Relative Strength Index (OSC)

2022년 4월 1일

Hello everyone, I'm sorry that the previous open-source version was hidden due to the house rules, I've re-edited the description and re-posted it

(1) Indicator introduction

• This is RSI indicator with original divergence algorithm

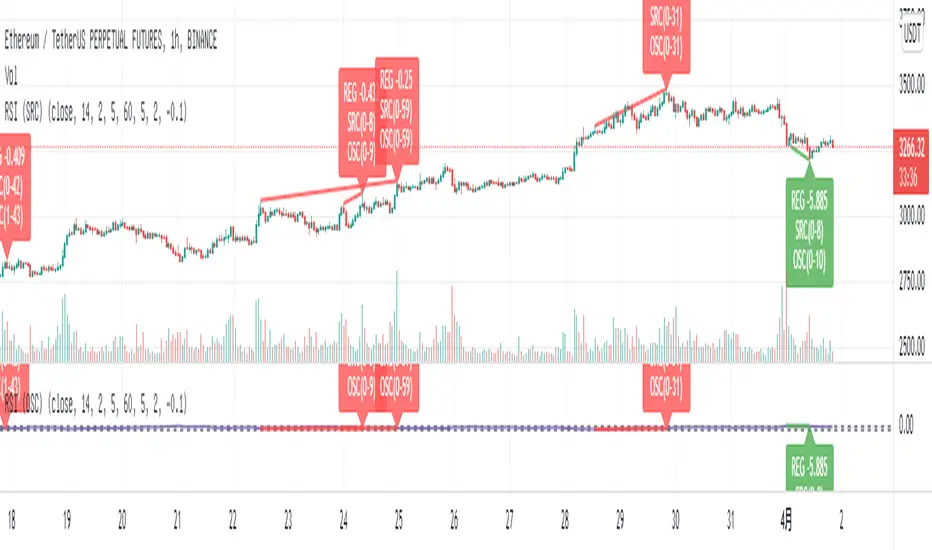

• This indicator is plotted on the RSI and can display the divergence locations and corresponding divergence intensity

• The tolerance of N Klines at the top or bottom positions for price and indicator is supported, which is set by the "Tolerant Kline Number"

• Support the display of divergence intensity, that is, the REG/HID value displayed on the label, which is less than 0. The smaller the intensity value, the more obvious divergence

• Support the filtering of divergence intensity, which is set by "Cov Threshold". The divergence that REG/HID divergence intensity greater than this value will be ignored

• In the label, REG indicates regular top/bottom divergence while HID indicates hidden top/bottom divergence

• In the label, SRC(x-y) indicates a divergence occurred from the x-th kline to the y-th kline

• In the label, OSC(x-y) indicates a divergence occurred from the indicator corresponding to the x-th kline to the y-th kline


(2) Parameter introduction
- RSI Settings

• Source: The source to calculate RSI, close by default

• RSI Length: The length of RSI, 14 by default


- RSI Divergence

• Pivot Lookback Right: Number of K-line bars recalling the pivot top/bottom point to the right

• Pivot Lookback Left: Number of K-line bars recalling the pivot top/bottom point to the left

• Max of Lookback Range: Maximum number of retracing K-line bars to find the pivot top/bottom point

• Min of Lookback Range: Minimum number of retracing K-line bars to find the pivot top/bottom point

• Tolerant Kline Number: Maximum tolerance in indexing top/bottom points of Klines and indicators

• Cov Threshold: Divergence intensity, which is less than 0. The smaller the intensity value, the more obvious divergence

• Plot Bullish: Whether to draw regular bullish divergence label

• Plot Hidden Bullish: Whether to draw hidden bullish divergence label

• Plot Bearish: Whether to draw regular bearish divergence label

• Plot Hidden Bearish: Whether to draw hidden bearish divergence label


Happy trading and enjoy your life!

————————————————————————————————————————

各位朋友大家好，很抱歉之前的开源版本因为规则原因被隐藏，我已经重新编辑了说明并重新发布

(1) 指标说明

• 该指标绘制于 RSI 上，并在对应位置显示背离点以及背离程度

• 支持顶底位置 N 根K线的容差，由 Tolerant Kline Number 参数设置

• 支持背离强度的显示，即标签上显示的 REG/HID 值，该值小于 0，且越小说明背离程度越大

• 支持背离强度的过滤，由 Cov Threshold 参数设置， REG/HID 值大于这个值的背离会被忽略

• 标签中，REG 表示常规顶/低背离，而 HID 表示隐藏顶/底背离

• 标签中，SRC(x-y) 表示从当前第 x 根 bar 开始到第 y 跟 bar 出现背离

• 标签中，OSC(x-y) 表示从当前第 x 根 bar 所对应的指标开始到第 y 跟 bar 所对应的指标出现背离


(2) 参数说明
- RSI Settings

• Source: 计算 RSI 指标的 source，默认为 close

• RSI Length: 计算 RSI 指标的长度，默认为 14


- RSI Divergence

• Pivot Lookback Right: 枢纽顶/底点往右回顾的 K线 bar 数量

• Pivot Lookback Left: 枢纽顶/底点往左回顾的 K线 bar 数量

• Max of Lookback Range: 回寻找枢纽顶/底点的最大回溯 K线 bar 数量

• Min of Lookback Range: 回寻找枢纽顶/底点的最小回溯 K线 bar 数量

• Tolerant Kline Number: K线和指标的顶/底点索引的最大误差

• Cov Threshold: 背离程度，该值小于 0，且越小说明背离程度越大

• Plot Bullish: 是否绘制常规底背离提示

• Plot Hidden Bullish: 是否绘制隐藏底背离提示

• Plot Bearish: 是否绘制常规顶背离提示

• Plot Hidden Bearish: 是否绘制隐藏顶背离提示


祝大家交易愉快

2022년 4월 1일

릴리즈 노트

fix some wrong descriptions of the parameter group
