Donchian Cloud Score w/ Table

2023년 1월 12일

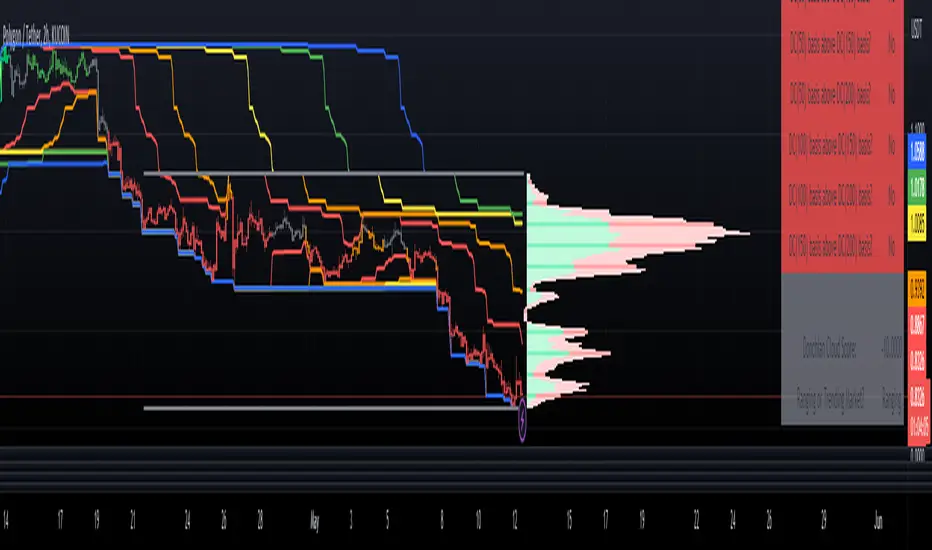

This indicator contains a set of 5 Donchian channels (upper, lower, and basis plotted) defaulted to lengths of 25, 50, 100, 150, and 200. A set of conditions associated with the channels aims to determine ranging versus trending markets. Weights are given to these conditions accordingly, then tallied up to determine the "cloud score", ranging between -25 and 25. For the purposes of this indicator, a ranging market is determined by a cloud score between -10 and 10, while a positive trending market has a score higher than 10 and a negative trending market has a score lower than -10. This score is accompanied by altered bar color to reflect the score - gray for ranging markets, green for positive trending markets, and red for negative trending markets. Breaking of upper or lower Donchian bands is typically a good indication of a potential breakout. Having a weighted system for these conditions will provide more insight and layers of confirmation into a Donchian breakout trading strategy. The table will reflect these values through positive, negative, and neutral coloration.

The list of conditions and their associated weights for this indicator are as follows:
- Broke the 25-length DC (DC(25)) upper band in the previous 3 bars - +1 if true, 0 if false
- Broke the DC(50) upper band in the previous 3 bars - +2 if true, 0 if false
- Broke the DC(100) upper band in the previous 3 bars - +3 if true, 0 if false
- Broke the DC(150) upper band in the previous 3 bars - +4 if true, 0 if false
- Broke the DC(200) upper band in the previous 3 bars - +5 if true, 0 if false

- Broke the DC(25) lower band in the previous 3 bars - -1 if true, 0 if false
- Broke the DC(50) lower band in the previous 3 bars - -2 if true, 0 if false
- Broke the DC(100) lower band in the previous 3 bars - -3 if true, 0 if false
- Broke the DC(150) lower band in the previous 3 bars - -4 if true, 0 if false
- Broke the DC(200) lower band in the previous 3 bars - -5 if true, 0 if false

- DC(25) basis line above the DC(50) basis line - +1 if true, -1 if false
- DC(25) basis line above the DC(100) basis line - +1 if true, -1 if false
- DC(25)basis line above the DC(150) basis line - +1 if true, -1 if false
- DC(25) basis line above the DC(200) basis line - +1 if true, -1 if false
- DC(50) basis line above the DC(100) basis line - +1 if true, -1 if false
- DC(50) basis line above the DC(150) basis line - +1 if true, -1 if false
- DC(50) basis line above the DC(200) basis line - +1 if true, -1 if false
- DC(100) basis line above the DC(150) basis line - +1 if true, -1 if false
- DC(100) basis line above the DC(200) basis line - +1 if true, -1 if false
- DC(150) basis line above the DC(200) basis line - +1 if true, -1 if false

2023년 2월 24일

릴리즈 노트

Fixed the spelling of "Donchian" in the settings

2023년 4월 25일

릴리즈 노트

Added a plotcandle() function in addition to the barcolor() function. To see the candle coloration properly, ensure that the indicator is "brought to front".

Colors changed as well. Instead of green for above a score of 10, red below a score of -10, and grey in-between, the colors are now:
- Score >= 10 --> Lime
- Score between 7 and 10 --> Green
- Score between 7 and -7 --> Gray
- Score between -7 and -10 --> Orange
- Score <= -10 --> Red

2023년 5월 12일

릴리즈 노트

- Removed the basis lines from the plot (not the calculations, though) for visual clarity
- Removed the barcolor() option and replaced with the plotcandle() function
- Added in a volume profile range in which the user can view a breakdown of volume across the previous x number of bars as a histogram with y number of sections. The number of bars back, the number of histogram sections, and the size of the histogram can be set individually.

2023년 5월 12일

릴리즈 노트

Reduced number of bars back in default (250 from 300).
