EMA Ribbon Trend Filter [StrixEDGE]EMA Ribbon Trend Filter is a multi-layered trend analysis system built around a triple EMA ribbon (8/21/55) enhanced with squeeze detection, a composite momentum score, multi-timeframe confluence, and dynamic slope-adaptive coloring.
This is not another moving average overlay. It is a full trend diagnostics dashboard designed to answer five questions at a glance: what is the trend, how strong is it, how long has it been running, is the ribbon compressing toward a breakout, and do higher timeframes agree.
🔹 CORE CONCEPT
Three exponential moving averages — fast (8), mid (21), and slow (55) — form a visual ribbon on the chart. When the EMAs stack in order (fast > mid > slow), the trend is bullish. When they invert, the trend is bearish. Anything else is a transitional state labeled neutral.
The ribbon is more than directional. The distance between the fastest and slowest EMA (the "spread") measures trend strength as a percentage, and the rate at which the ribbon expands or contracts reveals momentum shifts before price confirms them.
🔹 WHAT MAKES THIS DIFFERENT
Most EMA ribbons stop at direction and color. This indicator adds four analytical layers that standard ribbons lack:
▸ Ribbon Squeeze Detection
The indicator continuously measures ribbon width against its own moving average. When the three EMAs converge below a configurable threshold (default: 30% of average width), the ribbon turns yellow and the dashboard flags an active squeeze. Compression precedes expansion — a squeeze ending often marks the start of a directional move. Dedicated markers appear on the chart when a squeeze releases into a bullish or bearish trend.
▸ Composite Momentum Score (0–100)
A single number synthesizing four components, each weighted equally at 25 points:
— EMA alignment: full bullish or bearish stack scores 25, mixed scores 0
— Slope agreement: all three EMAs rising or all falling scores 25, partial agreement scores 12
— Spread strength: scaled between 0–25 based on where the current spread falls relative to the user-defined weak and strong thresholds
— Price position: price above the ribbon in a bullish trend (or below in bearish) scores 25, inside the ribbon scores 10, on the wrong side scores 0
The score is color-coded: cyan (80+), teal (60–79), orange (40–59), red (below 40).
▸ Dynamic Slope-Adaptive Colors
When enabled, each EMA line independently changes color based on its own slope — rising EMAs render green, falling EMAs render red. This provides an early visual warning when individual EMAs begin to flatten or turn, even while the overall stack remains intact. A bullish stack where the slow EMA has turned red is a qualitatively different signal than one where all three are green.
▸ Multi-Timeframe Dashboard
A built-in table displays trend state, spread, and grade across five timeframes simultaneously: the current chart timeframe plus 15-minute, 1-hour, 4-hour, and daily. The active chart timeframe is marked with ► in the MTF rows if it matches one of the fixed timeframes. A confluence row at the bottom counts how many timeframes are bullish versus bearish and outputs a directional bias: Strong Bull (4–5 aligned), Bull Lean (3), Neutral (mixed), Bear Lean (3 bearish), or Strong Bear (4–5 bearish).
🔹 CROSSOVER SIGNAL HIERARCHY
Not all EMA crossovers carry equal weight. The indicator differentiates three tiers with distinct marker sizes and shapes:
▸ Fast × Mid (tiny triangles) — Early signal. The 8 EMA crossing the 21 EMA indicates short-term momentum shift. Frequent, noisy, best used as an alert rather than a trigger.
▸ Fast × Slow (standard triangles) — Confirmation signal. The 8 EMA crossing the 55 EMA has more significance and filters out minor pullbacks.
▸ Mid × Slow (diamonds) — Trend shift signal. The 21 EMA crossing the 55 EMA typically marks a genuine change in trend direction. This is the least frequent and most reliable crossover in the set.
All crossover markers can be toggled off independently.
🔹 DASHBOARD COMPONENTS
The top-right dashboard (position and size adjustable) contains:
Row 1 — TREND: Current trend state (▲ Bullish / ▼ Bearish / ◆ Neutral) with bar count showing how long the trend has been active.
Row 2 — ZONE: Where price sits relative to the ribbon (Above / Inside / Below) alongside the momentum score out of 100.
Row 3 — SQUEEZE: Active squeeze status with a visual strength bar (██████░░░░) showing current spread intensity relative to its recent range.
Rows 4–9 — MTF OVERVIEW: Trend, spread, and grade for the current chart, 15m, 1H, 4H, and 1D timeframes.
Row 10 — BIAS: Multi-timeframe confluence verdict with bull/bear count.
🔹 SETTINGS
EMA Settings
▸ Fast / Mid / Slow EMA Period — Default 8/21/55. Periods must be in ascending order.
▸ Source — Close, Open, High, Low, HL2, HLC3, or OHLC4.
Overlay Settings
▸ Background Transparency — Controls the intensity of the trend-colored chart background (0–99).
▸ Crossover Signals — Toggle the three-tier crossover markers.
▸ Ribbon Fill — Toggle the colored fill between EMA lines. Fill turns yellow during active squeeze.
▸ Dynamic EMA Colors — Toggle slope-based EMA coloring (green = rising, red = falling).
▸ Bar Coloring — Optional candle coloring by trend state and price position. Off by default.
▸ Squeeze Detection — Toggle squeeze markers and dashboard squeeze status.
Dashboard
▸ Table Size — Tiny, Small, Normal, or Large.
▸ Table Position — 8 positions (corners, centers, sides).
Thresholds
▸ Weak/Strong spread thresholds (%) — Define what constitutes a weak, moderate, or strong trend spread. These should be adjusted per asset class (e.g., lower for forex, higher for crypto).
▸ Squeeze Lookback — Number of bars used to calculate the average ribbon width for squeeze detection.
▸ Squeeze Ratio — The compression threshold. A ribbon narrower than this ratio × average width triggers a squeeze flag.
🔹 ALERTS
Nine configurable alert conditions:
▸ Bullish / Bearish EMA Crossover (any tier)
▸ Mid × Slow Bullish / Bearish Shift
▸ Bullish / Bearish Stack Formed
▸ Squeeze Detected (compression begins)
▸ Squeeze Released (expansion starts)
▸ High Momentum (score crosses above 80)
🔹 SUGGESTED USE
This indicator works as a trend filter, not a standalone entry signal. Use it to:
▸ Confirm directional bias across timeframes before entering trades
▸ Identify compression phases where breakouts are likely
▸ Gauge trend quality and exhaustion via the momentum score and bar duration
▸ Filter crossover signals — a Fast × Mid cross during an active squeeze with MTF confluence is a higher-probability setup than the same cross in isolation
Pairs well with oscillators (RSI, Stochastic), volume-based indicators, or support/resistance tools for entry timing. 지표
Chart Narrator [verticetrading]An analyst that writes. Chart Narrator reads your chart and describes it in plain sentences — no cryptic numbers, no jargon.
◆ WHAT IT DOES
It turns the chart into a written briefing: main trend and whether the higher timeframe agrees, unusual calm or agitation in volatility, the last structural break in plain words, nearest tested support/resistance with distances in %, fresh candlestick patterns, and volume participation. Everything is summarized in a bias header with a conviction score ("BULLISH — 4 of 5 signals point the same way").
◆ HOW IT WORKS
Six evidence modules (trend + higher-timeframe confirmation, volatility ranking, market structure, merged pivot levels weighted by touches, candlestick patterns, volume vs its average) each produce a verdict and the numbers behind it. A narration engine turns them into sentences, stays silent when a module has nothing to say, and detects confluences between modules (e.g. a bullish pattern printed on a tested support) to flag higher-quality situations. With enough history it also adds a day-of-week tendency note with its sample size.
◆ HOW TO USE IT
Add it to any symbol and timeframe. Read the panel top to bottom: bias first, evidence after. Set the "Bias flip" alert to receive the full written analysis when the overall picture changes. Interface in English and Spanish.
◆ WHAT MAKES IT ORIGINAL
Indicators show numbers; this one explains itself. Every sentence cites its evidence, only confirmed bars are narrated (no repainting), and the panel says "mixed, no clear edge" when that is the truth.
◆ LIMITATIONS
It describes the present; it does not predict. Not financial advice.
────────────────────────
ESPAÑOL — El analista que escribe
Convierte el gráfico en un informe escrito: tendencia y si la temporalidad mayor la confirma, calma o agitación inusual de la volatilidad, la última ruptura estructural en palabras llanas, soporte/resistencia más cercanos con distancias en %, patrones de velas recientes y participación del volumen — todo resumido en un sesgo con puntuación de convicción ("ALCISTA — 4 de 5 señales apuntan en la misma dirección"). Seis módulos de evidencia alimentan un motor de redacción que calla cuando no hay nada que decir y detecta confluencias entre señales. Solo narra velas confirmadas (sin repintado). Interfaz en inglés y español. Describe el presente, no predice; no es asesoramiento financiero. 지표
BBI Dynamic Deviation Bands [William_wq] 这是一个什么样的指标？
简单来说，这是一个 “自带安全边界的趋势导航仪” 。
它把交易者最常用的四条不同周期的均线（超短期、短期、中期、长期）融合在一起，提炼出一条最敏锐的 多空分水岭（BBI主线） 。
为了防止大家在交易中“追高被套”或“抄底抄在半山腰”，我在这条主线的上下两侧，加上了 两层会动态变宽变窄的“安全气道”（波动通道） 。这就像是给价格装上了防撞护栏，一眼就能看出价格是处于“正常散步状态”还是“跑得太快快要累死了”。
---
这个指标怎么用？
使用这个指标非常简单，只需要看懂 颜色和位置 ：
1. 看颜色认方向（顺势而为）
绿色通道：代表目前是安全的多头（上涨）趋势。
红色通道：代表目前是危险的空头（下跌）趋势。
顺势原则：绿色只买不卖，红色只卖不买。
2. 看位置找机会（买卖点定位）
回调买入点（顺势上车）：
当大趋势 是绿色 时，价格每次跌回中间的“BBI主线”或者“1.0倍下轨”附近，只要跌不下去，就是极佳的“顺势买入”机会。
极端预警点（落袋为安/反转提防）：
价格是有弹性的，不可能一直涨。当价格猛烈冲出最外层的 “2.0倍外轨”时，说明多头跑得太累了，这时候 千万不要去追高 ，反而应该考虑分批止盈，或者等待行情反转。
---
这个指标适合在哪里用？
适用的市场：
不管是 数字货币（BTC/ETH）、外汇黄金、还是美股/A股 ，只要有波动、有趋势的市场，它都能提供非常清晰的参考。
适用的时间周期：
日线 / 4小时线（中长线）：适合上班族，用来过滤市场噪音，稳稳地抓住一波主升浪。
5分钟 / 5分钟（超短线/日内）：适合职业交易员，用来捕捉当天价格波动的极端高低点，进行快速的高抛低吸。
---
交易员寄语
“交易不仅要看清方向，更要看清价格所处的位置。”
希望这个工具能成为您交易系统里的得力助手。指标虽好，但也请配合好您的资金管理和止损纪律，祝大家交易顺利！
---
What kind of indicator is this?
Simply put, this is a "trend navigator with its own safety margins" .
It merges four moving averages of different periods most commonly used by traders (ultra-short, short, medium, and long-term) into one, extracting the most sensitive bull/bear dividing line (the BBI main line) .
To prevent everyone from "getting trapped by chasing highs" or "buying the bottom halfway down the hill," I have added two layers of "safety air cushions" (volatility channels) that dynamically widen and narrow on both sides of this main line. This is like installing crash barriers for the price, making it easy to see at a glance whether the price is "walking normally" or "running too fast and about to exhaust itself."
---
How to use this indicator?
Using this indicator is very simple—you only need to understand the colors and positions :
1. Look at the color to identify the direction (Go with the trend)
Green channel: Represents a safe bullish (upward) trend.
Red channel: Represents a dangerous bearish (downward) trend.
Trend principle: Only buy and do not sell in green; only sell and do not buy in red.
2. Look at the position to find opportunities (Pinpointing entry and exit points)
Pullback buying point (Hop on the trend):
When the major trend is green , every time the price drops back near the middle "BBI main line" or the "1.0x lower band," as long as it holds, it is an excellent opportunity for a "trend-following purchase."
Extreme warning point (Take profit / Beware of reversal):
Price is elastic and cannot rise forever. When the price violently breaks out of the outermost "2.0x outer band," it means the bulls are running too tired. At this time, do not chase the high under any circumstances ; instead, you should consider taking profits in batches or waiting for a trend reversal.
---
Where is this indicator suitable for use?
Applicable markets:
Whether it is cryptocurrencies (BTC/ETH), forex and gold, or US stocks / A-shares , as long as it is a market with volatility and trends, it can provide very clear references.
Applicable timeframes:
Daily / 4-hour chart (medium to long-term): Suitable for office workers to filter out market noise and steadily catch a major rising wave.
15-minute / 5-minute chart (scalping / intraday): Suitable for professional traders to capture the extreme highs and lows of the day's price fluctuations for quick buying low and selling high.
---
Trader's Message
"Trading is not just about seeing the direction clearly, but more importantly, seeing the position where the price is located."
I hope this tool can become a powerful assistant in your trading system. Although the indicator is great, please also coordinate it with your capital management and stop-loss discipline. Wish everyone successful trading! 지표

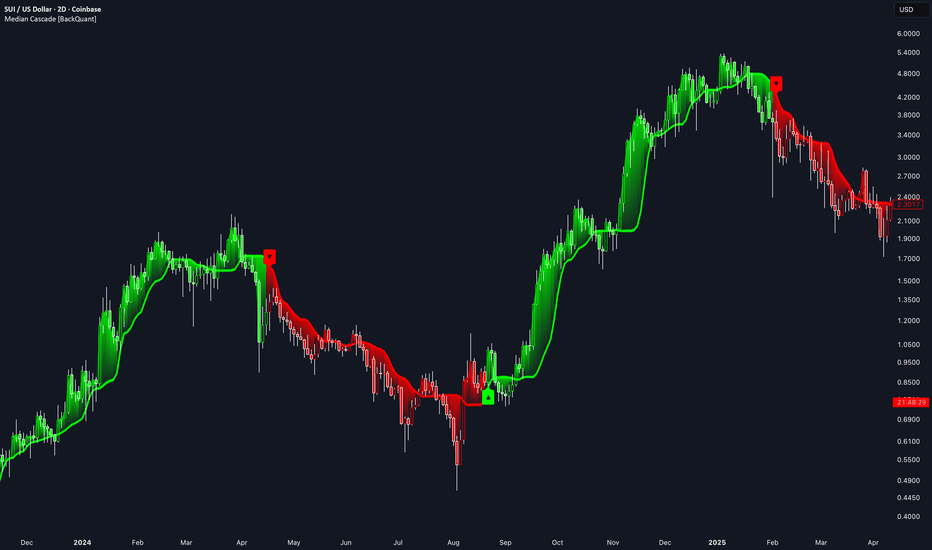

Median Cascade Trend [BackQuant]Median Cascade Trend
Overview
Median Cascade Trend is a noise-resistant trend-following indicator that combines multiple causal median filters , an Ehlers-style two-pole Super Smoother , and a configurable chop-gating system .
Its purpose is to identify meaningful directional structure while rejecting the types of price movement that frequently cause conventional moving averages to whipsaw:
Single-bar spikes
Short-lived price shocks
Irregular wicks
Low-efficiency sideways movement
Weak slopes that do not represent genuine directional progress
The indicator processes price in three distinct stages:
A median-filter cascade removes impulsive and short-duration noise.
A two-pole low-pass filter smooths the remaining structural signal.
A chop gate decides whether a change in direction is strong enough to update the active trend state.
This creates a trend line that is intentionally more selective than a standard moving average. The line itself can continue evolving, but trend-state changes are only accepted when the underlying movement passes the chosen quality tests.
The result is a system that separates:
The estimated trend line
The raw direction of that line
The confirmed trend regime
That distinction is important. The indicator does not assume that every small turn in a smoothed line represents a valid trend reversal.
Core idea
Most trend filters are built around linear averaging. They combine historical prices using fixed or exponentially decaying weights.
Examples include:
SMA
EMA
WMA
HMA
DEMA
These filters are effective for general smoothing, but they have a weakness: a single extreme observation can influence the output immediately.
If one bar produces a large wick or temporary price shock, a moving average will usually be pulled toward that value because it includes the magnitude of every observation.
A median filter behaves differently.
Instead of averaging the values inside a window, it sorts them and selects the middle observation. This makes it highly resistant to isolated extremes.
Median Cascade Trend uses this property repeatedly before applying traditional low-pass smoothing.
The central idea is:
Remove impulsive noise first.
Smooth the cleaned signal second.
Confirm direction only when the movement is efficient or sufficiently steep.
This ordering is deliberate. Smoothing a noisy series and filtering noise before smoothing are not the same thing.
Where median filtering comes from
Median filters are widely used in digital signal processing, image processing, and engineering.
One of their best-known applications is the removal of impulse noise , sometimes called salt-and-pepper noise in image processing.
Impulse noise consists of isolated extreme observations that are not representative of the surrounding signal.
In market data, comparable events include:
Temporary liquidity gaps
Single-bar stop runs
Erroneous prints
Sharp wick reversals
News spikes that immediately retrace
A linear smoother such as an SMA or EMA cannot distinguish between an important sustained move and an isolated outlier. Both are included according to their numerical magnitude.
A median filter is nonlinear. It selects the central-ranked value rather than calculating an arithmetic mean.
For example, consider five observations:
100
101
102
103
140
The average is:
109.2
The median is:
102
The isolated value at 140 significantly distorts the average but has almost no effect on the median.
This is why median filtering is especially useful when the objective is to preserve structural turns while rejecting isolated noise.
What makes a median filter nonlinear
A normal moving average can be represented as a weighted sum of its inputs.
A median filter cannot.
Its output depends on the ordering of observations, not their arithmetic combination. This makes it a nonlinear filter.
That has several important consequences:
Outliers have limited influence.
Edges and structural shifts can be preserved more cleanly.
The response is not equivalent to ordinary low-pass averaging.
The filter may hold a value until enough observations confirm a change.
In trading terms, the median filter often behaves more like a structural selector than a conventional average.
What “causal” means
The median stages in this indicator are causal.
A causal filter uses:
The current bar
Past bars
It does not use future observations.
This matters because many visually smooth filtering methods can only produce their best result by centering the calculation around the current point, which requires future data.
This script does not do that.
Every value is calculated from information available at that bar, making the filter suitable for live use.
Why use a cascade of median filters
A single median filter can remove isolated spikes, but noise does not always occur as one extreme bar.
It can appear as:
Two-bar shocks
Short bursts of alternating movement
Small clusters of irregular candles
Residual distortion left after the first filtering pass
A cascade applies multiple median stages sequentially:
Stage 1 processes the original source.
Stage 2 processes the output of Stage 1.
Stage 3 processes the output of Stage 2.
Each stage removes a different layer of short-duration instability.
The process is similar to progressively cleaning a signal:
The first stage removes obvious impulse noise.
The second stage removes remaining short-term irregularity.
The third stage produces a more stable structural series before low-pass smoothing.
Median Stage 1
The first median stage is intended to reject isolated one-bar disturbances.
With a short setting such as 3:
The filter remains responsive.
Single-bar spikes are strongly suppressed.
Most genuine multi-bar movement remains visible.
This is the most tactical stage.
Median Stage 2
The second stage receives an already-cleaned input.
Its role is to remove:
Short-duration residual noise
Small alternating movements
Irregularity that survived the first stage
A slightly longer setting such as 5 creates stronger structural consistency.
Median Stage 3
The third stage provides the final nonlinear cleaning pass.
With a longer setting such as 7:
The output becomes more stable.
Short-lived reversals are reduced.
Only more persistent changes are passed into the low-pass stage.
This is the most conservative median stage.
Cascade Stages input
The user can select how many median stages are active:
1 stage: fastest and most responsive
2 stages: balanced noise rejection
3 stages: strongest impulse-noise suppression
The unused stages are still calculated internally, but the selected stage determines which output is sent into the Super Smoother.
Why cascade instead of one very long median
Applying several shorter filters is not always equivalent to applying one very long median filter.
A long median window can:
Delay structural changes heavily
Flatten shorter trend legs
Become insensitive to local turns
A cascade allows the filtering process to be distributed across stages.
This provides greater control over:
How aggressively isolated noise is removed
How much short-duration movement survives
How smooth the final structural input becomes
It also lets users build a progression such as 3, 5, and 7 rather than applying one blunt window.
The low-pass stage
After the median cascade, the signal is passed into a two-pole Super Smoother .
The median cascade removes nonlinear impulse noise, but its output can still contain:
Small step changes
Residual high-frequency movement
Sharp transitions caused by median replacement
The Super Smoother converts that cleaned but potentially stepped series into a smoother trend line.
This creates a hybrid filtering system:
Nonlinear median filtering for outlier rejection
Recursive low-pass filtering for smooth trend extraction
These components solve different problems.
Where the Super Smoother comes from
The Super Smoother is associated with John F. Ehlers’ application of digital signal processing techniques to financial markets.
It is based on the behavior of a two-pole low-pass filter and is designed to suppress high-frequency components more effectively than many conventional moving averages.
Traditional moving averages are simple smoothers, but they are not necessarily optimized as frequency-selective filters.
The Super Smoother uses recursively calculated coefficients derived from:
Exponential decay
Trigonometric terms
A selected cutoff period
The objective is to reduce high-frequency market noise while retaining lower-frequency directional structure.
What a low-pass filter does
A low-pass filter allows slow-moving components of a signal to pass while reducing fast-moving components.
In market terms:
Slow components represent broader trend structure.
Fast components represent short-term noise, rapid oscillation, and microstructure disturbance.
The Low-Pass Length determines the separation.
Lower values:
Allow more short-term movement through.
React faster.
Produce more turns.
Higher values:
Reject more high-frequency movement.
Produce a smoother trend line.
Respond later to structural changes.
Why use a two-pole filter
The number of poles broadly describes the order and steepness of a filter.
A two-pole filter generally provides:
Stronger attenuation of high-frequency noise than a one-pole filter.
A smoother output.
A more defined frequency response.
It also uses prior filter outputs recursively, allowing substantial smoothing without requiring an extremely long direct averaging window.
The full signal-processing chain
The calculation can be understood as:
Raw price source
Median Stage 1
Optional Median Stage 2
Optional Median Stage 3
Two-pole Super Smoother
Direction measurement
Chop-quality validation
Persistent trend state
Each layer has a distinct purpose.
Median cascade
Rejects isolated and short-lived noise.
Super Smoother
Reduces the remaining high-frequency variation.
Direction logic
Determines whether the final line is rising or falling.
Chop gate
Determines whether that directional change is trustworthy enough to update the confirmed trend.
Trend direction calculation
The raw direction is determined by comparing the current trend line with its value several bars ago:
Bullish if trendLine > trendLine
Bearish if trendLine < trendLine
Neutral if equal
The Direction Lookback controls how much movement is required before the line is classified as rising or falling.
A one-bar comparison is extremely responsive but can detect tiny slope changes.
A longer comparison:
Measures movement across a wider interval.
Reduces sensitivity to one-bar flattening.
Produces more stable raw direction.
Raw trend versus confirmed trend
One of the most important design choices is that the script separates:
Raw trend
Confirmed trend
The raw trend reflects the current direction of the filtered line.
The confirmed trend is persistent and changes only when:
The raw trend points in a new direction.
The chop gate is open.
If the line turns but the gate is closed:
The active trend state remains unchanged.
The attempted flip can optionally be displayed as blocked.
This prevents every small line turn from immediately becoming a regime reversal.
Why a chop filter is needed
Even an advanced smoother can turn repeatedly during sideways markets.
Smoothing reduces noise, but it does not determine whether movement is:
Directional
Efficient
Large enough relative to volatility
A line can move upward and downward in a range while making almost no net progress.
The chop gate addresses this by evaluating two separate properties:
Directional efficiency
ATR-normalized slope
Efficiency Ratio
The first gate component measures how efficiently the trend line has moved over a selected window.
The calculation compares:
Net movement
Total movement
Net movement is:
|trendLine - trendLine |
Total movement is:
Sum of |bar-to-bar changes in trendLine|
The Efficiency Ratio is:
Efficiency = Net Movement / Total Movement
The result ranges approximately from 0 to 1.
Efficiency near 1
The line has moved mostly in one direction.
Example:
It advanced 10 units.
Its total path was approximately 11 units.
This indicates a clean directional move.
Efficiency near 0
The line has moved back and forth without achieving much net progress.
Example:
It travelled 20 units in total.
But ended only 1 unit from where it started.
This indicates chop.
Where the Efficiency Ratio comes from
The Efficiency Ratio is commonly associated with Perry Kaufman’s work on adaptive market analysis and the Kaufman Adaptive Moving Average.
Its purpose is to distinguish directional movement from noisy movement.
It does not measure the size of a move alone.
It measures the quality of the path.
This makes it highly suitable as a trend gate.
A market can be volatile but inefficient. It can move aggressively in both directions and still make little progress.
The Efficiency Ratio helps identify that distinction.
Minimum Efficiency
The Minimum Efficiency input determines the directional quality required for the efficiency condition to pass.
Lower values:
Allow more irregular movement.
Open the gate more frequently.
Produce earlier but noisier trend changes.
Higher values:
Require cleaner directional travel.
Block more sideways flips.
Produce fewer but more selective regime changes.
ATR-Normalized Slope
The second gate component measures how large the trend-line movement is relative to current market volatility.
It calculates:
|trendLine - trendLine | / ATR
This converts the line’s movement into ATR units.
Without normalization, a slope of 10 points could be:
Large for one instrument
Negligible for another
Large in a quiet regime
Small during extreme volatility
ATR normalization makes the slope more comparable across assets and regimes.
What normalized slope measures
The Efficiency Ratio asks:
Was the movement directionally clean?
ATR-normalized slope asks:
Was the movement large enough to matter?
These are different questions.
A move can be highly efficient but extremely small.
For example:
A perfectly smooth drift of only 0.02 ATR may not justify a new trend regime.
A move can also be large but inefficient:
A violent range may travel several ATRs while repeatedly reversing.
Using both filters gives a more complete view of trend quality.
Minimum ATR-Normalized Slope
The Minimum ATR-Normalized Slope defines the movement threshold.
Lower values:
Accept weaker slopes.
React sooner.
Allow more low-energy flips.
Higher values:
Require stronger displacement.
Reduce weak trend transitions.
Delay signals until movement becomes more meaningful.
Gate modes
The indicator provides four chop-gate modes.
Efficiency Ratio
Only directional efficiency is required.
Best suited for users who care primarily about whether movement is clean, regardless of its exact magnitude.
ATR-Normalized Slope
Only slope strength is required.
Best suited for users who want movement to exceed a volatility-adjusted threshold, even if the path is not perfectly efficient.
Both
Both conditions must pass:
Efficiency must be high enough.
Slope must be strong enough.
This is the strictest mode and generally provides the strongest chop rejection.
Either
Only one condition must pass.
This is more permissive:
A very clean slow trend may pass through efficiency.
A powerful but less orderly move may pass through slope.
It provides a balance between responsiveness and filtering.
Gate behavior
When the gate is open:
A new raw direction can update the trend state.
Bullish and bearish flips can be confirmed.
When the gate is closed:
The previous confirmed trend persists.
Attempted changes are blocked.
The display can dim, turn neutral, or hide.
This means the indicator behaves like a regime-holding system during chop.
It does not constantly reset to neutral. It retains the last confirmed direction until sufficient evidence supports a new one.
Blocked flips
A blocked flip occurs when:
The filtered line attempts to change direction.
The attempted direction differs from the confirmed trend.
The chop gate is closed.
The raw direction has just changed.
These can optionally be displayed as small X markers.
Blocked flips are useful because they show:
Where a basic slope indicator would have reversed.
Where the chop filter rejected that reversal.
How much signal noise the gate is removing.
They are not trade signals. They are diagnostic information.
Trend persistence
The trend variable is persistent.
Once bullish:
It remains bullish until a valid bearish change passes the gate.
Once bearish:
It remains bearish until a valid bullish change passes the gate.
This persistence is central to the design.
The indicator is not merely coloring every local slope. It is maintaining a confirmed market regime.
Display modes when the gate is closed
The indicator offers three ways to display gated conditions.
Dim
The current trend color remains visible but becomes transparent.
This communicates:
The last confirmed trend is still active.
Current conditions are not strong enough to confirm a new direction.
This is useful when you want regime continuity without overstating conviction.
Neutral
The trend line and candles switch to the selected gate color.
This communicates:
The directional regime is being withheld.
Current conditions are considered non-trending or uncertain.
Hide
The trend line disappears while the gate is closed.
This is the strictest visual mode.
It communicates:
No actionable trend state should be displayed during the gated condition.
Trend line coloring
The base color is determined by the confirmed trend:
Bullish trend uses the long color.
Bearish trend uses the short color.
Uninitialized state uses gray.
The gate display can then modify the final presentation.
This allows the chart to show:
Direction
Confirmation status
Chop-filter activity
without needing a separate panel.
Gradient fill
The indicator fills the area between price and the trend line.
When price is above the trend line:
A bullish gradient is displayed.
When price is below the trend line:
A bearish gradient is displayed.
The fill is stronger near the trend line and fades toward price.
This emphasizes the trend line as the structural reference.
The fill color follows the gate display state:
Full trend color when active
Dimmed during a closed gate in Dim mode
Neutral when configured
Hidden when the trend line is hidden
Trend glow
A soft glow is created around the filtered line using a small ATR-scaled distance.
The glow width is:
ATR(14) × 0.06
Using ATR ensures the glow remains visually proportional across assets and price scales.
The glow does not affect the calculation. It improves readability and reinforces the line as the central structural output.
Candle coloring
Candles can be colored using the confirmed trend state.
When the gate is open:
Bull trend produces bullish candles.
Bear trend produces bearish candles.
When the gate is closed:
Dim mode fades the existing trend color.
Neutral mode uses the gate color.
Hide mode removes the candle override.
This gives an immediate full-chart view of both trend and gate status.
Signal logic
Signals only occur when the confirmed trend changes.
Bullish flip
A bullish signal requires:
The active trend becomes bullish.
The previous trend was bearish.
The gate accepted the change.
Bearish flip
A bearish signal requires:
The active trend becomes bearish.
The previous trend was bullish.
The gate accepted the change.
This is more selective than simply detecting a change in line slope.
How to interpret the indicator
Bullish confirmed regime
A bullish regime means:
The median-filtered and low-pass-smoothed trend line is rising.
The move satisfied the selected chop-filter conditions when the regime changed.
The last accepted direction remains bullish.
Bearish confirmed regime
A bearish regime means:
The final trend line is falling.
The bearish change passed the selected quality gate.
The last accepted direction remains bearish.
Gate closed in an existing trend
This means:
The market is no longer moving with sufficient efficiency or slope.
A new reversal cannot currently be confirmed.
The previous regime remains stored.
This often occurs during:
Consolidation
Pullbacks
Low-volatility drift
Transition phases
Repeated blocked flips
Repeated blocked changes suggest:
The filtered line is oscillating.
Directional quality is weak.
A normal trend-following system would likely be whipsawing.
This is exactly the environment the gate is designed to avoid.
How to use it in practice
1. Directional regime filter
Use the confirmed trend to filter other setups:
Favor long trades during bullish regimes.
Favor short trades during bearish regimes.
Reduce activity when the gate is closed.
2. Trend-following entries
Bullish and bearish flips can be used as directional entry triggers, especially when confirmed by:
Price structure
Breakouts
Volume expansion
Higher-timeframe alignment
3. Pullback framework
During an established trend:
Price returning toward the trend line may represent a pullback.
If the gate remains closed but the trend does not flip, the move may be consolidation rather than reversal.
If the opposite direction eventually passes the gate, the regime has changed more meaningfully.
4. Chop avoidance
The most direct use is avoiding repeated entries during low-quality conditions.
When the display is dim, neutral, or hidden:
Reduce confidence in new trend signals.
Wait for efficiency or slope to recover.
5. Diagnostic comparison
Enable blocked flips to see how often the raw trend attempts to reverse without confirmation.
This helps tune:
Efficiency threshold
Slope threshold
Gate mode
Input guide
Source
Selects the price series used by the median cascade.
Close is the standard choice.
Alternatives such as hl2 or hlc3 may produce a slightly smoother structural input.
Cascade Stages
Controls how many median filters are used.
1: responsive
2: balanced
3: strongest noise rejection
Median Stage Lengths
Control the window used at each stage.
Shorter values:
Preserve responsiveness.
Remove only very short-duration noise.
Longer values:
Produce stronger structural filtering.
Delay shorter turns.
Low-Pass Length
Controls the two-pole Super Smoother.
Lower:
Faster
More reactive
Higher:
Smoother
More conservative
Direction Lookback
Controls how far back the current line is compared when determining raw direction.
Lower:
Faster slope changes
Higher:
More stable directional measurement
Efficiency Length
Controls the window used to measure net movement versus total path movement.
Shorter:
More responsive efficiency reading
More sensitive to recent chop
Longer:
More stable directional-quality assessment
Minimum Efficiency
Controls how clean the directional path must be.
Higher values make the gate stricter.
Slope Length
Controls the interval across which trend-line movement is measured.
Slope ATR Length
Controls the ATR baseline used to normalize slope.
Minimum ATR-Normalized Slope
Controls the minimum volatility-adjusted displacement required.
Higher values require stronger movement.
Tuning examples
Faster trend configuration
1 or 2 median stages
Short median windows
Lower Super Smoother length
Direction Lookback of 1 or 2
Either gate mode
Lower efficiency and slope thresholds
Balanced configuration
2 or 3 median stages
Progressive windows such as 3, 5, 7
Moderate Super Smoother length
Both gate mode
Moderate thresholds
Conservative configuration
3 stages
Longer median windows
Higher Super Smoother length
Longer Direction Lookback
Both gate mode
Higher minimum efficiency and slope
How this differs from a normal moving average
A standard moving average:
Uses linear averaging.
Responds directly to outlier magnitude.
Changes direction whenever its slope changes.
Median Cascade Trend:
Uses nonlinear outlier-resistant preprocessing.
Applies a proper recursive low-pass stage.
Separates raw direction from confirmed regime.
Blocks changes during inefficient or weak movement.
How this differs from a normal median filter
A basic median filter only removes impulse noise.
This indicator extends the idea by adding:
Multiple median stages
Low-pass smoothing
Direction measurement
Efficiency gating
Volatility-normalized slope gating
Persistent trend states
Signals and alerts
It is not simply a median-smoothed line. It is a complete trend-regime system built on median preprocessing.
How this differs from a Supertrend
A Supertrend uses ATR bands around price and changes state when price crosses the trailing boundary.
Median Cascade Trend does not use a volatility band to define direction.
Instead:
Direction comes from the slope of the filtered trend line.
ATR is used only to normalize slope and scale visuals.
Trend changes are controlled by movement quality rather than price crossing a stop band.
Strengths
Strong rejection of isolated price spikes
Preserves broader structural movement
Combines nonlinear and linear filtering
Separates raw turns from confirmed trend changes
Configurable chop rejection
Volatility-normalized slope testing
Persistent directional regimes
Blocked-flip diagnostics
Fully causal calculation
Limitations
Strong filtering can delay genuine reversals.
Long median windows may suppress shorter trend legs.
Strict gate settings can hold the previous regime too long.
Loose gate settings reduce the benefit of chop filtering.
Median filters can produce stepped transitions before low-pass smoothing.
The indicator remains reactive rather than predictive.
Best use cases
Median Cascade Trend is particularly suited for:
Trend filtering in noisy markets
Reducing false reversals caused by wicks
Swing-trading regime identification
Filtering entries from faster systems
Dynamic trend-structure visualization
Avoiding sideways-market whipsaws
It can be applied across:
Equities
Indices
Futures
Forex
Cryptocurrency
Commodities
Alerts
The indicator provides alerts for:
Confirmed bullish trend changes
Confirmed bearish trend changes
Trend changes blocked by the chop filter
The blocked-flip alert is especially useful for monitoring when the line attempts to reverse but market quality remains insufficient.
Summary
Median Cascade Trend is a multi-stage trend extraction system designed to reject impulsive market noise before determining direction. It first applies up to three causal median filters, progressively removing isolated spikes and short-duration disturbances. The cleaned series is then passed through a two-pole Super Smoother to extract a stable low-frequency trend line.
Rather than accepting every change in slope, the indicator evaluates the quality of the movement using directional efficiency and ATR-normalized slope. Depending on the selected gate mode, trend changes can require clean directional travel, sufficient volatility-adjusted displacement, or both.
This produces a persistent trend state that changes only when the filtered line turns and the surrounding movement is strong enough to justify the reversal. The final result is a robust trend-following framework that combines outlier rejection, low-pass smoothing, directional-quality measurement, and chop suppression into a single overlay.
지표

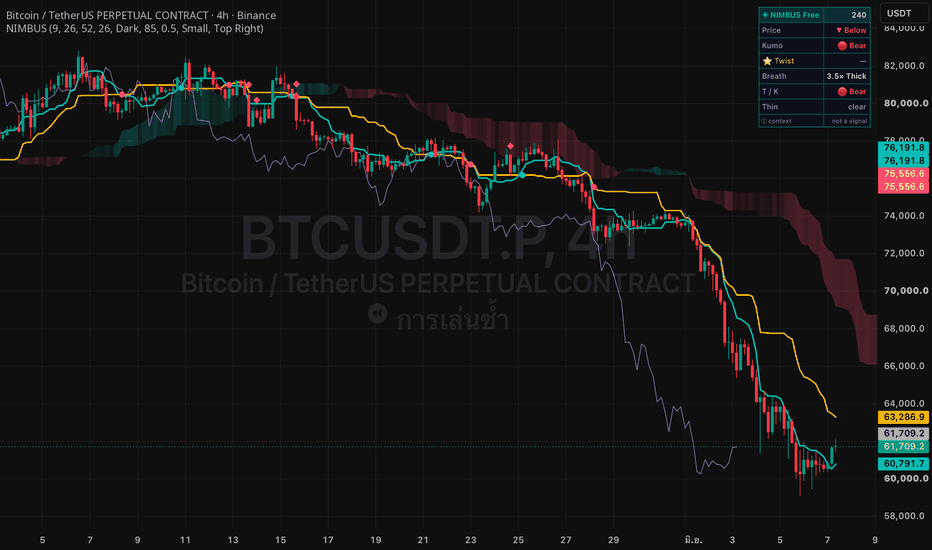

NIMBUS [ThrowMaster]NIMBUS — Ichimoku, Reimagined
Classic Ichimoku is brilliant at one question: "Where is the market right now — above, below, or inside equilibrium?" It is far weaker at a second question every trader actually asks: "What is the market about to do?" NIMBUS keeps the timeless Ichimoku framework intact and adds three dimensions built to close that gap — while staying, above all, honest about what it is: a context compass, not a signal service.
━━━━━━━━━━━━━━━━━━━━━━━━
WHAT NIMBUS ADDS
━━━━━━━━━━━━━━━━━━━━━━━━
⭐ Kumo Calendar — Twist Countdown
Here is a fact most traders overlook: the cloud in front of price is already fully drawn. It is built entirely from bars that have ALREADY closed, then shifted forward. That means the next Kumo twist — the moment Senkou Span A and B swap places — is knowable in advance. NIMBUS scans the forward cloud and counts the exact number of bars until that twist reaches price, and warns you when a thin (weak-support) section is approaching. Ichimoku's most-criticised trait, its lag, becomes a schedule you can read ahead of time.
🩵 Breath — Volume-Reactive Cloud
A traditional cloud shows only price geometry; two identical-looking clouds can hide wildly different conviction. NIMBUS makes the cloud breathe: it grows more solid on high-participation bars and fainter on quiet ones, using a rolling volume percentile. Strength becomes something you feel at a glance, not something you have to calculate. (If a symbol reports no volume, the cloud simply falls back to a fixed opacity — no errors, no false readings.)
🎯 Tenkan / Kijun Cross Clarity
The Tenkan–Kijun cross is one of Ichimoku's core events, yet on most charts it hides in a tangle of lines. NIMBUS marks it precisely: a teal circle at the exact price and bar of a bullish cross, coral for bearish. No hunting, no guessing.
◈ Alignment Hints
When four independent Ichimoku dimensions agree — price vs cloud, Tenkan vs Kijun, cloud colour, and the lagging read — AND price reclaims or loses the cloud on a confirmed bar, NIMBUS prints a small diamond. Think of it as a puzzle-game hint: a nudge to look at the right place at the right time. It is deliberately NOT a buy or sell command, and it never gives a target.
━━━━━━━━━━━━━━━━━━━━━━━━
HOW IT WORKS
━━━━━━━━━━━━━━━━━━━━━━━━
NIMBUS uses the standard Ichimoku engine — Tenkan (9), Kijun (26), Senkou Span A/B, and the lagging span, all fully adjustable. "Price vs cloud" always compares price to the cloud value formed 25 bars ago — the cloud actually sitting beneath price — so the reading reflects real, settled structure. The Breath layer reads a 100-bar volume percentile. The Twist Countdown walks the already-shifted forward cloud bar by bar. The dashboard summarises everything in one compact, theme-aware panel with a mobile Compact Mode.
━━━━━━━━━━━━━━━━━━━━━━━━
HOW TO USE
━━━━━━━━━━━━━━━━━━━━━━━━
• Read the cloud for trend context: above = bullish structure, below = bearish, inside = balance/chop.
• Watch the Twist Countdown to anticipate when the cloud's support/resistance character is about to flip — useful for planning, not for firing blind.
• Let Breath tell you whether a move carries participation or is running on fumes.
• Treat Hints as a reason to zoom in and do your own analysis, never as an instruction.
• Combine with your own risk management. NIMBUS describes context; your plan decides the trade.
━━━━━━━━━━━━━━━━━━━━━━━━
ON REPAINTING (honest)
━━━━━━━━━━━━━━━━━━━━━━━━
Once a bar closes, every Tenkan/Kijun/Span value is fixed and never redrawn. Hints and cross circles are all confirmed on bar close, so a printed mark cannot later disappear. The forward cloud is built only from closed bars, so it is fixed the moment it appears. Like all Ichimoku tools, values on the CURRENT, still-forming bar update in real time until that bar closes — this is inherent to the framework, not hidden repainting, and it is documented directly in the code comments.
━━━━━━━━━━━━━━━━━━━━━━━━
WHAT MAKES IT ORIGINAL
━━━━━━━━━━━━━━━━━━━━━━━━
NIMBUS is not another line pack bolted onto Ichimoku. The Kumo Calendar reframes the forward cloud as a countdown rather than a static shape; Breath encodes participation into the cloud's opacity; and the whole tool is presented as an explicit, self-aware CONTEXT instrument — it tells you what the market is, and refuses to pretend it knows your trade. The code is fully open for you to read, study, and learn from.
━━━━━━━━━━━━━━━━━━━━━━━━
NOTE
━━━━━━━━━━━━━━━━━━━━━━━━
No indicator predicts the future or guarantees results, and NIMBUS makes no such claim. It is a decision-support and context tool. Markets involve risk; always use independent judgement and sound risk management. Not financial advice.
지표

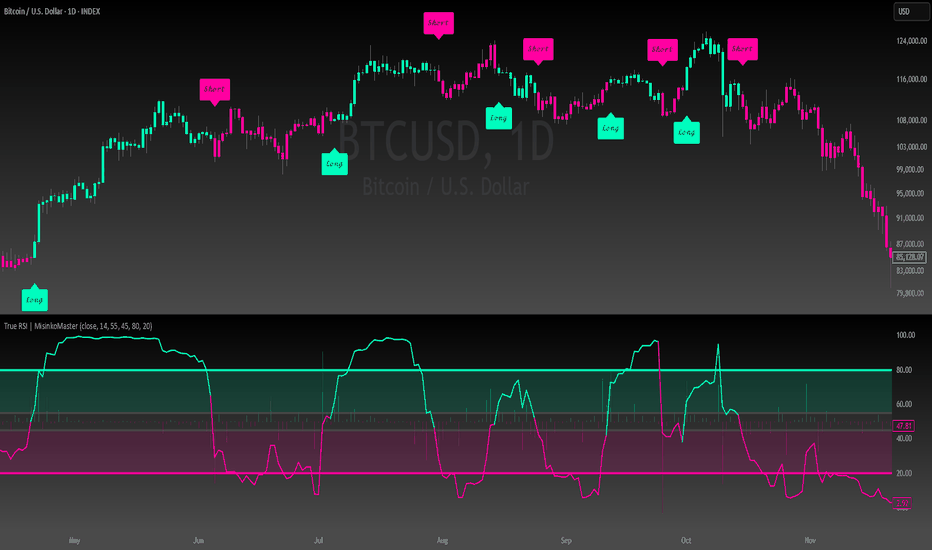

True RSITrue RSI | MisinkoMaster
The True RSI is a sophisticated reimagining of classical momentum. While the standard Relative Strength Index has served as a cornerstone of technical analysis for decades, it possesses a fundamental limitation: it treats all price movements equally, regardless of the time elapsed since the market made its last major peak or trough. The True RSI solves this structural blind spot by merging price magnitude with temporal trend strength, weighting gains and losses according to their cyclical maturity.
By dynamically scaling price changes against the time-distance of local extremes, this indicator filters out lateral market noise, reduces false overbought and oversold readings during strong trends, and delivers highly responsive execution signals.
How It Works (The Core Architecture)
Instead of relying solely on arithmetic averages of upward and downward price closes, True RSI filters raw market data through a multi-dimensional momentum matrix:
Temporal Trend Weighting: The algorithm continuously tracks how recently the market has formed local highs and lows. Gains are mathematically weighted against the strength of the upward cycle, while losses are weighted against the strength of the downward cycle.
Cycle-Weighted Ratio: The accumulated, time-weighted gains and losses are calculated over your lookback period to establish a true relative strength ratio. If gains occur during an actively surging upward cycle, they are heavily amplified; if they occur during a dying trend, they are heavily discounted.
Smoothing and Normalization: This ratio is translated into a normalized scale bounded between 0 and 100, providing an incredibly smooth yet responsive oscillator curve alongside a secondary momentum velocity histogram.
Key Features
Time-Weighted Velocity: True RSI prevents premature exhaustion signals during strong, healthy trends because it understands the cyclical age of the current market move.
On-Chart Candle Morphing: The system automatically tracks the oscillator state and alters the colors of your main price bars to keep you visually aligned with the macro trend.
Overlay Execution Labels: Prints pristine Long and Short labels directly on your price pane the moment the underlying structural momentum shifts past your designated thresholds.
Internal Divergence Histogram: Built directly behind the main oscillator is a custom acceleration histogram that monitors the rate of change of the index, pinpointing hidden momentum shifts before they reflect in the price.
Input Parameters & Optimization Guide
Lookback Period: Controls the baseline window for both the cycle-strength calculations and the price change evaluations. A default of 21 bars balances macro trend stability with immediate short-term utility.
Long / Short Thresholds: The structural boundaries that dictate trend shifts. By default, crossing above 50 signals a bullish regime, while dropping below 50 initiates a bearish regime.
Overbought / Oversold Thresholds: Tailored extremes designed to isolate true premium and discount zones. The default 80 and 20 boundaries act as high-probability mean-reversion targets.
Trading Strategies & Execution
Trend Regime Shift
When momentum builds structural backing, the indicator updates its trend state:
A crossing of the True RSI above the Long Threshold triggers a green Long label on the chart, changing candle colors to vibrant green.
A crossing of the True RSI below the Short Threshold triggers a pink Short label, shifting candle colors to pink.
Exhaustion Reversals
Because price movement is weighted against cycle time, entering the overbought (80) or oversold (20) zones represents a market that is genuinely overstretched both in terms of price velocity and time. Reversals from these zones carry high statistical significance for counter-trend scalps or trailing-stop targets.
Acceleration Divergences
Watch the central histogram centered around the 50 line. When the price is grinding flat but the histogram starts to rise or fall aggressively, it shows that the internal speed of the True RSI is accelerating. This hidden momentum often foreshadows explosive breakout expansions.
Disclaimer: Trading financial markets involves high risk. This technical script is designed as an informational analytical tool to support your rule-based mechanical execution system and does not constitute financial advice. 지표

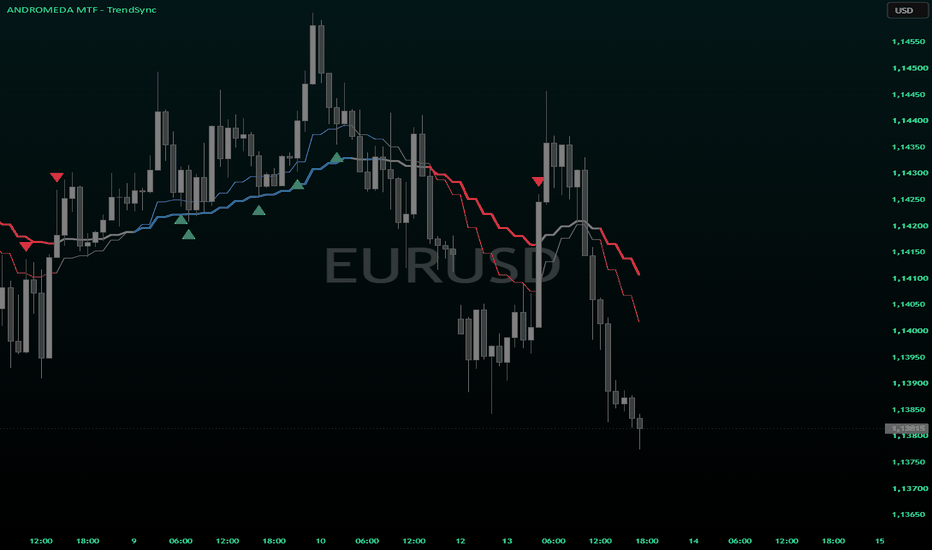

ANDROMEDA MTF - TrendSyncThis script is a Multi-Timeframe (MTF) trend-following system designed to capture pullbacks in direction of the primary trend.
Rather than relying on a single indicator, ANDROMEDA MTF utilizes a specific mashup of Moving Averages, MACD, and RSI to establish a robust rule-based logic. The primary goal of combining these tools is to filter out lower-timeframe market noise and only authorize entries when momentum and structural trend are perfectly aligned on a higher timeframe.
⚙️ CORE MECHANICS (The Mashup Logic):
To avoid false signals during choppy markets, the script requires three distinct conditions to agree on the Higher Timeframe (MTF) before defining a trend:
Baseline Trend Structure: Uses two customizable Moving Averages (EMA or SMA). The fast MA must be above/below the slow MA to indicate directional bias.
Momentum Confirmation (Slope): The algorithm calculates the mathematical slope of the slow MA (MA - MA ). The trend is only validated if the slow MA is actively sloping in the trade direction, preventing entries in flat/consolidating markets.
Volume/Momentum Filter: The MACD Histogram must confirm the bias (Histogram > 0 for longs, < 0 for shorts).
🎯 ENTRY TRIGGERS & VISUAL FILTERS:
The Pullback Trigger: Once the Higher Timeframe establishes a firm trend (Blue for Bullish, Red for Bearish), the script monitors the local timeframe. A Buy/Sell signal is generated exactly when the local price pulls back and crosses the MTF Moving Averages, offering a discounted entry in the direction of the macro trend.
Exhaustion Filter (RSI): A fast RSI operates in the background. It overrides the candle colors (turning them orange by default) to visually warn the trader that the asset has reached overbought/oversold extremes, cautioning against late entries.
🛠️ HOW TO USE:
Apply the indicator to your execution timeframe (e.g., 15m) and set the MTF parameter in the settings to your macro directional timeframe (e.g., 240 for 4H). Wait for the trend lines to turn Blue/Red and enter on the printed signal arrows during pullbacks.
🇧🇷 (PORTUGUÊS)
Este script é um sistema seguidor de tendência Multi-Timeframe (MTF) projetado para capturar pullbacks na direção da tendência primária.
⚙️ COMO FUNCIONA (A Lógica):
Para evitar sinais falsos, o script exige que 3 condições concordem no Tempo Gráfico Maior (MTF) antes de definir a tendência:
Estrutura: Duas médias móveis (EMA/SMA). A rápida deve estar alinhada com a lenta.
Momento (Inclinação): O algoritmo calcula a inclinação matemática da média lenta. A tendência só é validada se a média estiver apontando para a direção da operação.
Filtro MACD: O Histograma do MACD deve confirmar o fluxo (Maior que zero para compras).
🎯 GATILHOS E FILTROS VISUAIS:
Gatilho: Quando o tempo gráfico maior estabelece a tendência (Azul para Alta, Vermelho para Baixa), o script gera o sinal de entrada no momento em que o preço atual faz um pullback e toca as médias móveis do tempo gráfico maior.
Filtro de Exaustão (RSI): Um RSI rápido colore os candles de laranja para avisar visualmente que o ativo chegou a uma zona de sobrecompra/sobrevenda, evitando que você entre muito tarde no movimento.
COMO USAR: Adicione o indicador no seu gráfico de execução (ex: M15) e configure o parâmetro MTF no menu para o seu gráfico de referência (ex: 240 para H4). Aguarde as médias ficarem azuis ou vermelhas e opere os sinais de seta a favor da co 지표
Trend-Reset Cumulative Delta [ChartPrime]Trend-Reset Cumulative Delta
🔶 OVERVIEW
Standard Cumulative Delta indicators track the net difference between buying and selling volume from a fixed starting point (like the start of the day). While useful, they often become skewed by historical data that is no longer relevant to the current market trend.
The Trend-Reset Cumulative Delta solves this by using a Volatility-Based Reset Mechanism . It utilizes an ATR (Average True Range) envelope to define the current trend; the moment price breaks out of this envelope, the Cumulative Delta "resets." This ensures you are only seeing the volume pressure relevant to the active trend.
🔶 THE RESET LOGIC: ATR BANDS
The indicator tracks a central EMA surrounded by volatility bands. This creates a "dynamic corridor" for price:
Bullish Trend: When price closes above the Upper ATR Band , the trend turns bullish and the Delta counter resets to 0.
Bearish Trend: When price closes below the Lower ATR Band , the trend turns bearish and the Delta counter resets to 0.
By resetting at every major trend shift, the indicator highlights the "fresh" volume entering the move, making it easier to spot exhaustion or trend strength without the baggage of old data.
🔶 KEY FEATURES
Z-Score Pivot Filter: Not all pivots are equal. This indicator uses a Z-Score calculation to identify "outlier" volume events. It highlights pivots where the Cumulative Delta is significantly higher (statistically) than the recent average.
Trend Summary Labels: At the end of every trend cycle, a label appears summarizing the Total Volume and Net Delta of that specific move. This allows you to compare the "effort vs. result" of previous trends side-by-side.
Dual-Chart Projection: Filtered volume pivots can be projected directly onto the price chart, showing you exactly which candle saw a statistical volume extreme.
Dynamic Column Coloring:
* Bright Colors: Volume is increasing in the direction of the trend.
* Faded Colors: Volume pressure is slowing down (potential divergence/exhaustion).
🔶 TRADING APPLICATIONS
Effort vs. Result (Divergence): If price is making new trend highs but the Trend-Reset Delta columns are becoming smaller or fading in color, it indicates that the "effort" (volume) is not supporting the move.
Institutional Absorption: Look for the Z-Score Pivot markers (▼/▲). When these appear at structural support or resistance, it signifies that a massive amount of volume was transacted, often indicating institutional absorption.
Trend Strength Comparison: Use the Trend Summary Labels to look back at previous cycles. If the previous Bullish trend had a Net Delta of +1M and the current Bullish trend only has +200k, the current move is significantly more fragile.
🔶 CONCLUSION
The Trend-Reset Cumulative Delta provides a cleaner, more actionable view of volume flow. By stripping away irrelevant historical volume and focusing on the current volatility-defined trend, it helps traders identify when a trend is being fueled by fresh capital—or when it's simply running on fumes. 지표
지표

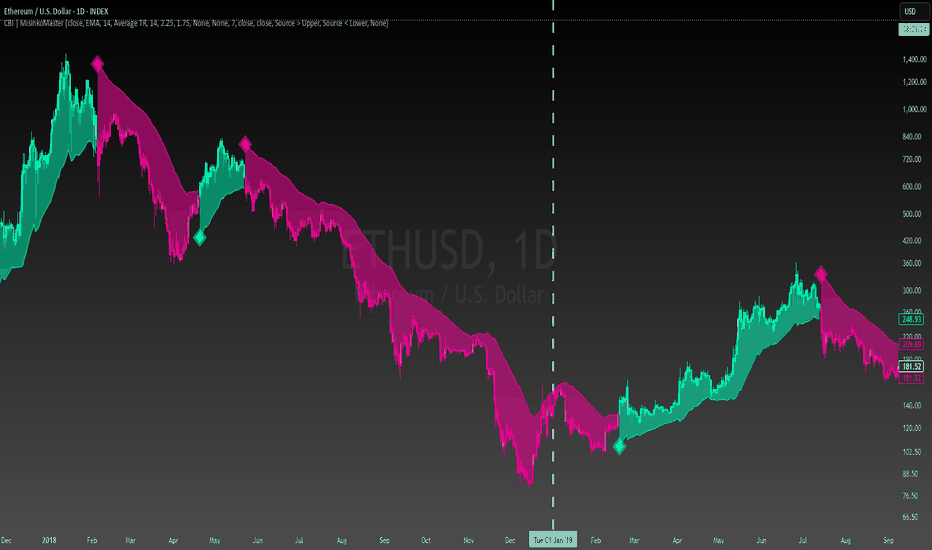

Custom Built IndicatorCustom Built Indicator | MisinkoMaster
Trading is often viewed as a purely mathematical or technical discipline, but the truth is that successful trading requires immense creativity. There are thousands of brilliant traders who have incredible, unique structural concepts in their minds but feel held back because they do not know how to write code. The Custom Built Indicator (CBI) was created to bridge that gap.
This indicator acts as a blank, programmable canvas designed to unlock your inner quantitative designer. It is a fully modular trading framework that allows you to build, test, and personalize your own technical systems without touching a single line of code. By giving you absolute control over the baseline foundation, the volatility wrapper, the smoothing layer, and the conditional trend logic, CBI makes algorithmic design accessible to everyone. Think of it as trading art—a sandbox where you can bring your most detailed visual concepts to life, spark your curiosity, and perhaps even inspire you to take your first steps into learning Pine Script development.
How It Works: The Modular Sandbox
Instead of trapping you inside a single, rigid formula, CBI breaks down technical analysis into five independent, hot-swapping algorithmic layers:
Baseline Settings: This establishes the gravitational core of your asset's price action. You can set this baseline using standard moving averages, advanced low-lag options, mathematical centerpoints like the median or statistical mode, or even a pure historical price offset.
Volatility Settings: This dictates how your system measures market expansion and compression. You can wrap your baseline using standard range tools, pure standard deviation, or robust absolute deviation models to map out precise market extremes.
Smoothing Settings: A unique layer that allows you to smooth out the upper and lower boundary bands independently of the central baseline. Applying secondary smoothing allows you to create highly tailored, fluid bands that conform uniquely to market noise.
Trend Logic Settings: The brain of your strategy. Here, you decide exactly what constitutes a market regime shift. You can define trend conditions based on price breaking the outer channels, crossing the baseline, or even pure momentum acceleration.
Confirmation Filters: To minimize false signals, you can apply secondary algorithmic checks—such as volume verification, rate of change agreement, or candle validation—before any structural trend shift is confirmed.
An Ocean of Creative Possibilities
To understand just how massive this sandbox is, we can calculate the exact number of unique logical setups available. If we completely ignore all numerical values (like lookback periods or band multipliers) and only look at the dropdown menus, the sheer volume of structural combinations is staggering:
Baseline Type: 11 options
Volatility Type: 5 options
Upper Band Smoothing Type: 11 options
Lower Band Smoothing Type: 11 options
Long Signal Logic: 3 options
Short Signal Logic: 3 options
Confirmation Type: 4 options
The Custom Built Indicator provides exactly 239,580 unique, without numerical inputs, meaning everyone will have a completely unique layout that fits them and their style.
When you factor in that the crossover and crossunder source inputs can also be independently assigned to any price data point, the mathematical possibilities soar into the millions. Every single trader can find, name, and perfect a structural footprint that is entirely their own.
Key System Features
On-Chart Canvas Synchronization: The system automatically tracks your custom logical state and dynamically projects it back onto the screen, shifting candle colors and painting custom visual envelopes to represent your unique market regime.
Asymmetric Modeling: Because the upper and lower multipliers and smoothing options are completely separated, you can build asymmetric strategies—such as tight, highly sensitive upper boundaries for fast momentum breakouts combined with wide, volatile lower boundaries to catch major macroscopic market drops.
Forward-Looking Integration: The conditional logic allows you to experiment with advanced structural confirmations, such as requiring two consecutive breakout bars or demanding expanding volume before confirming a trend pivot.
Input Parameters Layout
General & Baseline Settings
Source: The primary price feed running into your system core.
Baseline Type & Lookback: Chooses the foundational trend line, offering options ranging from traditional SMA, EMA, and WMA, to advanced zero-lag options like TEMA, HMA, ALMA, or statistical Mode and Median.
Volatility & Smoothing Settings
Volatility Type & Lookback: Defines the range measurement matrix (Average True Range, Median True Range, Standard Deviation, Mean Absolute Deviation, or Median Absolute Deviation).
Upper & Lower Multipliers: Independently scales the distance of the bands from the baseline.
Additional Smoothing Type & Lookback: Provides an extra filtering pass specifically for the outer bands to eliminate jagged lines and smooth out execution zones.
Trend Logic Settings
Crossover/Crossunder Source: Selects the specific price sources required to breach the upper and lower boundaries.
Long/Short Signal Logic: Sets the core activation condition (breaking bands, crossing the baseline, or tracking positive/negative rate of change).
Confirmation Type: Applies an optional secondary validation layer (Volume, Baseline ROC, or Extra Bar validation).
Embrace the Art of Strategy Design
The ultimate goal of the Custom Built Indicator is to prove that technical analysis doesn't have to be rigid or intimidating. It is a playground for your ideas. Load it onto your chart, test out your most unconventional theories, mix architectures that traditional packages keep separate, and discover what works for your unique visual style. If you find a combination that speaks to you, use that spark to look under the hood—because the journey from clicking options to writing your own custom scripts is much shorter than you think.
Disclaimer: Trading financial markets involves high risk. This technical script is designed as an educational and informational tool to support your rule-based mechanical execution system and does not constitute financial advice.
Final Note: If you find any bugs, errors, contact me either through DMs or in the comments, and I will fix them and update the script. 지표
Adaptive Source Supertrend (TESSEN)
Most Supertrend implementations do two things by default: use a fixed price source (usually hl2) and a fixed ATR multiplier. Both are decisions, not laws. This version makes them adaptive.
Source selection: on every bar, the script computes Kaufman's Efficiency Ratio — a public-domain formula from Perry Kaufman's KAMA — independently for Open, High, Low, and Close. ER measures how directionally a series has moved over a lookback window (1.0 = clean trend, 0.0 = pure noise). Whichever OHLC series currently has the highest ER becomes the working price source for the moving average and the trailing stop. A hysteresis margin (adjustable) stops it flipping between two near-tied sources on every bar.
Band width: the ATR multiplier isn't fixed either. It scales with a volatility percentile rank — where current ATR sits relative to its own recent range. Bands widen automatically in high-volatility regimes and tighten in low-volatility regimes, instead of using one multiplier for every market condition.
What it deliberately doesn't do: no signals dressed up as certainty, no repainting (all selection and flips evaluate on confirmed bars only), no performance claims. A dynamic source and adaptive bands are a different set of assumptions than the classic version — not a guaranteed improvement. Backtest both on your own instrument before trusting either.
Includes: adjustable MA type on the selected source, BUY/SELL labels and glow fills on trend flips, source-switch markers, and alerts for both trend flips and source switches. 지표
Relative Strength (RS) - Mansfield StyleRelative Strength (RS) measures how a symbol performs against a chosen
benchmark. Instead of plotting the raw price ratio — whose scale differs
from one symbol to another and makes comparison difficult — this script
normalizes the ratio (symbol close / benchmark close) against its own
simple moving average over a configurable lookback "Period". The result
is a zero-centered line that reads the same way on any symbol:
- RS above 0 and rising → the asset is outperforming the benchmark
- RS below 0 and falling → the asset is underperforming
- Zero-line crossings → shifts in relative leadership
Only the direction and the position relative to zero matter, not the
absolute value.
█ HOW IT WORKS
1. The script requests the benchmark's close on the selected timeframe.
2. It computes the raw ratio: symbol close / benchmark close.
3. The ratio is divided by its SMA over the "Period" lookback, minus 1 —
expressing how far the current relative strength stands above or
below its recent average.
4. An optional moving average of RS can be displayed as a signal line.
█ INPUTS
- Comparative Symbol: the benchmark (an index such as SPX, a sector
index, or any peer symbol — e.g. compare gold against silver).
- Period (default 50): normalization lookback. Shorter = more reactive,
longer = smoother and slower.
- Show Moving Average / Moving Average Period: optional smoothing line.
- Timeframe: leave empty to use the chart's timeframe, or select a
higher timeframe for multi-timeframe analysis.
█ HOW TO USE
Apply the indicator to any symbol. When RS holds above zero, the asset
is leading its benchmark — favor it for relative-strength strategies
(buy strength). When RS holds below zero, the asset is lagging — avoid
it or rotate out. Zero-line crossovers flag early changes in relative
leadership, and two built-in alerts fire on these crossings.
RS is a relative tool, not a timing tool: an asset can outperform a
falling benchmark while still declining in absolute terms. Combine it
with your own trend or entry criteria.
█ CREDITS
The normalization method follows the Mansfield Relative Strength
concept popularized by Stan Weinstein in "Secrets for Profiting in
Bull and Bear Markets".
█ NOTE ON HIGHER TIMEFRAMES
When a higher timeframe is selected in the Timeframe input, the value
of the current forming bar updates until that bar closes. Historical
values do not repaint. 지표

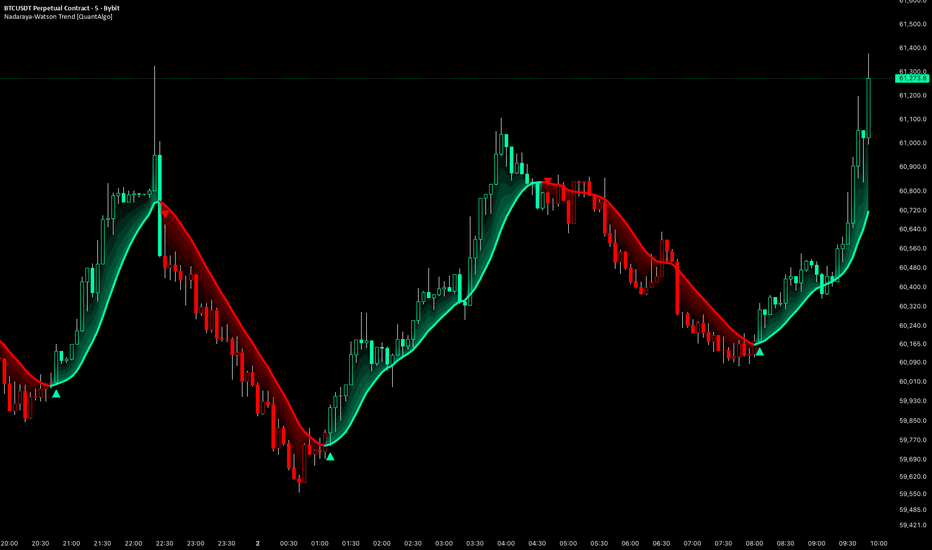

Nadaraya-Watson Trend [QuantAlgo]🟢 Overview
The Nadaraya-Watson Trend indicator estimates a smooth, adaptive trend path by applying non-parametric kernel regression directly to price. For each bar it weights historical values inside a configurable lookback window with a chosen kernel function, normalizes those weights, and returns a single endpoint estimate that forms the plotted trend line. Bandwidth and kernel type control how aggressively recent bars dominate the estimate, optional residual bands express how far price is dispersed around that path, and slope based coloring with reversal markers make direction and turning points readable at a glance across any timeframe or instrument.
🟢 How It Works
The indicator is built around a one sided Nadaraya-Watson (NW) estimator: only the current bar and past bars enter the calculation, so the path behaves as a causal smoother rather than a centered, repainting fit. The pipeline has three stages: kernel weighting over the lookback window, normalized regression into a single trend value, and optional residual band construction from the same estimate.
First, effective bandwidth is formed from the configured bandwidth and multiplier. Each lag distance is then mapped to a kernel weight. Gaussian and Rational Quadratic keep infinite support with different decay shapes. Compact kernels (Epanechnikov, Triangular, Quartic, Cosine) only assign weight while the normalized lag stays inside the unit interval:
kernel_weight(float dist, float h, string ktype, float rq) =>
float w = 0.0
if h > 0.0
float u = dist / h
if ktype == 'Gaussian'
w := math.exp(-(dist * dist) / (2.0 * h * h))
else if ktype == 'Rational Quadratic'
w := math.pow(1.0 + (dist * dist) / (2.0 * rq * h * h), -rq)
else if math.abs(u) <= 1.0
if ktype == 'Epanechnikov'
w := 0.75 * (1.0 - u * u)
else if ktype == 'Triangular'
w := 1.0 - math.abs(u)
else if ktype == 'Quartic'
w := (15.0 / 16.0) * math.pow(1.0 - u * u, 2.0)
else if ktype == 'Cosine'
w := (math.pi / 4.0) * math.cos(math.pi * u / 2.0)
w
float h = bandwidth * h_mult
Next, the Nadaraya-Watson path is computed as the normalized weighted average of the selected source across the lookback window. Nearer bars dominate when bandwidth is low. Weight spreads more evenly when bandwidth is high, producing a smoother path:
float sum_w = 0.0
float sum_p = 0.0
for i = 0 to lookback
float w = kernel_weight(i, h, kernel_type, rel_weight)
sum_w += w
sum_p += src * w
float nw_trend = sum_w != 0.0 ? sum_p / sum_w : na
Finally, residual bands can be drawn from a kernel weighted mean absolute residual of the source versus the current NW estimate, scaled by the band multiplier. When price is tightly clustered around the path the envelope contracts. When price is dispersed the envelope expands, framing extension and compression relative to the same estimator that defines the trend:
float sum_abs = 0.0
float sum_res_w = 0.0
for i = 0 to lookback
float w = kernel_weight(i, h, kernel_type, rel_weight)
if w > 0.0 and not na(src ) and not na(nw_trend)
sum_abs += w * math.abs(src - nw_trend)
sum_res_w += w
float residual = sum_res_w != 0.0 ? sum_abs / sum_res_w : na
float upper = not na(nw_trend) and not na(residual) ? nw_trend + residual * band_mult : na
float lower = not na(nw_trend) and not na(residual) ? nw_trend - residual * band_mult : na
🟢 Signal Interpretation
▶ Bullish Path (Rising NW Line with Bullish Color): When the Nadaraya-Watson estimate is increasing bar to bar, the path and optional gradient fill plot in the bullish color, reading as an uptrend in the kernel smoothed series. Treat this as a long bias: strongest on the reversal marker with price holding above the path, or on pullbacks that respect the path while slope stays up. Bias weakens if price loses the path and the slope flattens or flips down.
▶ Bearish Path (Falling NW Line with Bearish Color): When the estimate is decreasing bar to bar, the path and fill plot in the bearish color, reading as a downtrend in the kernel smoothed series. Treat this as a short bias: strongest on the reversal marker with price holding below the path, or on bounces that fail at the path while slope stays down. Bias weakens if price reclaims the path and the slope flattens or flips up.
▶ Residual Bands (Optional Envelope Around the Path): With residual bands enabled, the upper and lower lines track a scaled kernel weighted residual around the NW path. Touches or closes beyond the outer band highlight price stretched away from the estimate. Returns toward the path after an extension often mark mean reversion relative to the kernel trend rather than a full regime change. Band width is derived from how widely the source has been scattered around the current NW estimate inside the lookback window
🟢 Features
▶ Preconfigured Presets: Three parameter sets tuned for different trading styles and timeframes. "Default" delivers balanced trend estimation for swing trading on 1H to daily charts, smoothing short lived noise while still responding to genuine directional turns. "Fast Response" is built for intraday work on 5 minute to 1H charts, keeping the path tighter to recent structure so turns register earlier at the cost of more frequent reversals in chop. "Smooth Trend" is aimed at position style reading on daily and weekly charts, forming a more stable baseline that flips only when the kernel path itself shifts with more conviction. Kernel type, residual bands, and visual options stay independently configurable under every preset.
▶ Kernel Library: Six kernel functions expand how the same endpoint Nadaraya-Watson framework assigns weight across the window. Gaussian is the classic smooth default with infinite support. Epanechnikov, Triangular, Quartic, and Cosine are compact kernels that fully exclude bars beyond the bandwidth scale. Rational Quadratic keeps infinite support with heavier tails, and its Relative Weighting input controls how much influence farther bars retain versus a Gaussian like decay. Switching kernels changes the shape of the single plotted path without adding a second model or external oscillator.
▶ Residual Bands: Optional envelope around the NW path built from kernel weighted mean absolute residuals of the source versus the estimate, scaled by Band Multiplier. Enable when you want extension and compression context around the same trend line. Disable when you want only the path, gradient, and markers.
▶ Built-in Alerts: Five alert conditions support hands off monitoring. "Bullish Kernel Reversal" fires on the bar the path slope flips from down to up. "Bearish Kernel Reversal" fires on the bar the path slope flips from up to down. "Any Kernel Reversal" fires on either directional flip. "Source Cross Above Upper Band" and "Source Cross Below Lower Band" fire when the selected source crosses the residual envelope extremes. Alert messages include exchange, ticker, and timeframe for immediate context.
▶ Visual Customisation: Six color presets (Classic, Aqua, Cosmic, Cyber, Neon, and Custom) apply coordinated bullish and bearish colors to the path, gradient fill, residual bands, markers, optional bar coloring, and optional background coloring. Custom unlocks independent bullish and bearish color pickers. Gradient fill, residual bands, reversal markers, bar coloring, and background coloring can each be toggled so the chart stays as clean or as expressive as the workflow requires.
지표
지표
Flow Pressure Zones [BOSWaves]Volume Flow Zones - Body-Ratio Volume Flow Scoring with Baseline Fuel Visualization and Counter-Trend Reversal Zone Detection
Overview
Volume Flow Zones is a volume-weighted flow intensity system that scores each bar by the combined strength of its body-to-range ratio and volume participation relative to its rolling average, where baseline fuel candle height, price candle gradient intensity, and reversal zone placement are all driven by this normalized flow score rather than fixed thresholds or arbitrary indicator crossovers.
Instead of relying on raw volume or price direction alone, the flow score combines how convincingly price moved within the bar's range with how significant the bar's volume was relative to recent history, producing a single normalized conviction reading that reflects both the directional commitment and the participation weight behind each bar. This score then drives every visual layer of the indicator simultaneously, from the height of the fuel candles on the baseline to the brightness of the price candle coloring to the conditions required for a reversal zone to be planted.
This creates a flow monitoring framework that communicates momentum quality continuously rather than at discrete signal events. The baseline fuel candles grow and shrink with the flow score on every bar, the glow around the WMA baseline intensifies during high-flow periods, price candles brighten toward full trend color during strong participation and dim toward neutral during weak flow, and yellow reversal candles fire when meaningful counter-trend flow appears against the prevailing trend direction, at which point a forward-projecting reversal zone is planted at the bar's extreme.
Price is therefore evaluated not just for direction relative to the baseline but for the quality and intensity of the flow supporting that direction on every bar.
Conceptual Framework
Volume Flow Zones is founded on the principle that directional price movement carries meaningfully different conviction depending on how decisively price closed within the bar's range and how significantly volume participated relative to recent norms, and that these two dimensions together produce a more reliable flow quality reading than either dimension alone.
Traditional momentum tools measure direction through crossovers or oscillator levels that treat all bars equally regardless of whether a move was driven by decisive high-volume conviction or by drifting low-volume noise. This framework replaces uniform direction measurement with a per-bar flow quality score that distinguishes between genuine momentum and low-conviction price movement, encoding that distinction across every visual element so that chart reading reflects real participation dynamics rather than mechanical indicator states.
Three core principles guide the design:
Flow quality should be measured by combining body dominance within the bar range with volume significance relative to the rolling average, producing a score that captures both directional decisiveness and participation weight simultaneously.
The flow score should drive all visual outputs proportionally and continuously, with fuel candle height, price candle brightness, and baseline glow all scaling in real time to the current flow reading rather than switching between fixed states.
Counter-trend flow events meeting minimum quality thresholds should generate forward-projecting reversal zones anchored to the bar extreme where the opposing flow appeared, marking structural reference levels for potential trend exhaustion and reversal.
This shifts trend analysis from binary directional state monitoring into continuous flow quality measurement where visual intensity across every chart layer communicates conviction strength in real time.
Theoretical Foundation
The indicator combines WMA-based trend direction, body-to-range ratio measurement, volume SMA normalization, flow score derivation with rolling normalization, reversal detection through close position and volume threshold testing, and an ATR-scaled fuel candle system that projects flow intensity visually from the baseline.
The WMA baseline provides a weighted directional reference that gives greater importance to recent price activity, establishing the trend context that determines fuel candle positioning and reversal direction qualification. The body ratio measures what fraction of the bar's total range the body occupies, with higher ratios indicating more decisive directional commitment. Volume normalization divides each bar's volume by its SMA baseline and caps the result at three, preventing extreme volume spikes from overwhelming the score. The raw flow score multiplies body ratio by normalized volume, and a rolling highest-lowest normalization converts the raw score to a 0-1 range that adapts to the instrument's typical flow distribution. Reversal detection tests close position within the range, bar direction, and volume normalization simultaneously, requiring all three conditions to be met before a reversal event qualifies.
Four internal systems operate in tandem:
Flow Score Engine : Calculates body ratio from open-close range divided by high-low range, normalizes volume against its SMA baseline, multiplies the two to produce raw flow, then normalizes the raw flow against its rolling highest and lowest values to produce the final 0-1 score that drives all downstream visual systems.
Baseline Fuel Candle System : Positions ATR-scaled candles above the baseline for bearish trends and below for bullish trends, scaling their height proportionally to the current flow score so that fuel candle length grows and shrinks with each bar's flow intensity and coloring intensifies with a power-transformed opacity gradient.
Price Candle Gradient System : Colors chart candles from a dimmed version of the trend color at low flow scores to full saturation at high flow scores using a power-transformed gradient, with yellow override on any bar where counter-trend reversal conditions are met regardless of trend state.
Flow Reversal Zone Engine : Monitors for qualifying counter-trend flow events meeting close position, direction, and volume thresholds above the minimum flow score, plants ATR-scaled zones with dashed midlines at the bar extreme on confirmed qualifying bars subject to cooldown enforcement, extends zones forward until price closes through them on two consecutive bars.
This design allows every chart element to reflect the current flow score simultaneously while the reversal zone system independently tracks and maps the structural locations where meaningful counter-trend flow appeared.
How It Works
Volume Flow Zones evaluates price through a sequence of flow-aware scoring and visualization processes:
WMA Baseline Calculation : The Weighted Moving Average is calculated over the configured length, with trend direction determined by whether close is above or below the baseline on each bar.
Body Ratio Measurement : The absolute difference between close and open is divided by the high-low range to produce a 0-1 body ratio, with higher values indicating bars where price moved decisively in one direction relative to its total range.
Volume Normalization : Raw volume is divided by the Volume SMA baseline and capped at 3.0, producing a score that reflects whether the bar's participation was below average, average, or significantly above average relative to recent history.
Raw Flow Calculation : Body ratio is multiplied by normalized volume to combine directional decisiveness with participation weight into a single raw flow reading.
Rolling Normalization : The raw flow is normalized against its highest and lowest values over the configured lookback window, producing a 0-1 score that adapts to the instrument's typical flow range and maintains consistent visual scaling across different volatility regimes.
Reversal Condition Testing : Counter-trend pressure is identified when close position within the bar range is below 0.35 on a down-close bar with volume above 1.2 times SMA for bearish pressure, or above 0.65 on an up-close bar with the same volume threshold for bullish pressure. These conditions combined with the flow score threshold and trend direction determine whether a reversal event qualifies.
Price Candle Coloring : The normalized flow score is power-transformed and mapped to a gradient between a dimmed and full-saturation version of the trend color. Reversal bars override this coloring with full yellow regardless of score or trend direction.
Fuel Candle Rendering : ATR-scaled open and close prices are calculated from the WMA with the configured offset, with candle height proportional to the flow score. Fuel candles render below the baseline during uptrends and above during downtrends, with opacity power-transformed from the flow score and yellow coloring applied on reversal bars.
Baseline Glow Rendering : A wide low-opacity version of the WMA line and a thinner core line are plotted with transparency inversely proportional to a smoothed flow average, producing a glow effect that intensifies during sustained high-flow periods.
Reversal Zone Planting : On confirmed reversal bars satisfying the cooldown requirement, an ATR-scaled zone is planted centered on the bar's low for bullish reversals and high for bearish reversals, with a dashed midline and forward extension. Overlapping same-direction zones are removed before the new zone is added.
Zone Lifecycle Management : All active zones extend rightward on each bar. When close has been below the zone bottom for two consecutive bars for bullish zones or above the zone top for two consecutive bars for bearish zones, the zone is deleted.
Together, these elements form a continuously updating flow monitoring system where baseline fuel candles, price candle gradients, and reversal zones all derive from the same underlying flow score, producing a visually unified conviction map across every chart element.
Interpretation
Volume Flow Zones should be interpreted as a flow quality visualization system with structural counter-trend zone mapping:
WMA Baseline : The Weighted Moving Average provides the primary trend reference with a glow that brightens during sustained high-flow periods, providing an immediate visual indicator of whether the current trend is being supported by strong or weak participation.
Bullish Trend State (Green) : Active when close is above the WMA, with fuel candles projecting below the baseline and price candles coloring green with intensity scaling from the flow score.
Bearish Trend State (Red) : Active when close is below the WMA, with fuel candles projecting above the baseline and price candles coloring red with intensity scaling from the flow score.
Fuel Candle Height : The primary flow intensity indicator, growing with each bar's flow score and shrinking during low-conviction periods. Tall fuel candles indicate strong directional participation. Short or barely visible fuel candles indicate weak flow with low conviction behind the current price movement.
Fuel Candle Opacity : The transparency of each fuel candle further encodes flow strength, with near-opaque candles representing peak-intensity flow events and highly transparent candles representing low-intensity bars.
Price Candle Gradient : Price candles brighten toward full trend color saturation at high flow scores and dim toward a muted version of the trend color at low flow scores, providing an immediate bar-level conviction reading directly on the candlestick.
Yellow Candles : Both the price candle and fuel candle flash yellow on bars where qualifying counter-trend flow is detected, immediately identifying potential exhaustion or reversal events within the current trend.
Flow Reversal Zones : Horizontal zones with dashed midlines planted at bar extremes where qualifying counter-trend flow appeared, projecting forward as structural reference levels for the price level where opposing flow was significant enough to register. Bullish reversal zones are colored green, bearish reversal zones red.
Fuel candle height dynamics, price candle brightness, yellow reversal identification, and zone proximity collectively provide more flow intelligence than any element in isolation.
Signal Logic & Visual Cues
Volume Flow Zones presents two primary reversal signal types alongside continuous flow intensity monitoring:
Bullish Reversal (Yellow) : Triggered when price closes in the upper portion of the bar's range on an up-close bar with above-average volume during a downtrend, with flow score exceeding the minimum threshold. Plants a bullish reversal zone below the bar and flashes both price and fuel candles yellow.
Bearish Reversal (Yellow) : Triggered when price closes in the lower portion of the bar's range on a down-close bar with above-average volume during an uptrend, with flow score exceeding the minimum threshold. Plants a bearish reversal zone above the bar and flashes both price and fuel candles yellow.
Zone cooldown enforcement prevents multiple zones from planting in rapid succession, spacing reversal references to only the most significant qualifying events within each cooldown window.
Alert generation covers bullish and bearish reversal flow events and WMA bullish and bearish flips for systematic trend monitoring workflows.
Strategy Integration
Volume Flow Zones fits within flow-informed trend-following and counter-trend monitoring approaches:
Fuel Candle Conviction Reading : Use fuel candle height as a continuous trend health gauge. Consistently tall fuel candles during a trend indicate sustained directional commitment. Progressively shrinking fuel candles within an established trend suggest flow is weakening before any price indicator or crossover confirms the deterioration.
Yellow Candle Context : Use yellow reversal candles as early warning signals within trends rather than as standalone entry triggers. A single yellow candle mid-trend may indicate temporary absorption. Multiple yellow candles within a short window suggest building counter-trend pressure warranting reduced confidence in continuation.
Reversal Zone Reference Trading : Use planted reversal zones as structural reference levels where meaningful opposing flow previously appeared. Price returning to these zones encounters the price level where prior counter-trend activity was significant enough to meet the reversal detection criteria.
WMA Flip Entries : Use WMA direction changes combined with high fuel candle readings immediately following the flip as trend initiation entries, favoring flips that coincide with strong flow scores over flips that occur during low-conviction flow conditions.
Flow Divergence Detection : Monitor for situations where price is making new highs or lows but fuel candle height is diminishing, indicating that price extension is occurring on weakening flow and increasing the probability of reversal or consolidation.
Multi-Timeframe Flow Alignment : Apply higher-timeframe WMA direction and fuel candle intensity as directional context filters, engaging with lower-timeframe reversal zones and yellow candle signals only when they align with the broader flow state established on the higher timeframe.
Technical Implementation Details
Baseline Engine : Weighted Moving Average with configurable length for trend direction and fuel candle anchoring
Flow Score : Body-to-range ratio multiplied by volume SMA normalization with rolling highest-lowest normalization over configurable lookback
Reversal Detection : Close position threshold, bar direction, and volume normalization minimum combined with flow score floor and trend direction gating
Fuel Candles : ATR-scaled height with configurable multiplier and baseline offset, power-transformed opacity gradient, yellow override on reversal bars
Price Candles : Power-transformed flow gradient from dimmed to saturated trend color with full yellow override on reversal bars
Baseline Glow : Dual-line wide and narrow WMA plots with transparency inversely proportional to smoothed flow average
Zone System : Array-managed ATR-scaled zone boxes with dashed midlines, cooldown enforcement, overlap removal, forward extension, and two-bar consecutive close breach invalidation
Performance Profile : Optimized for real-time execution with configurable zone count cap and array-based lifecycle management
Optimal Application Parameters
Timeframe Guidance:
1 - 5 min : Intraday flow monitoring for scalping with shorter WMA and normalization lengths for faster flow score adaptation to intraday momentum shifts
15 - 60 min : Session-level trend flow tracking with balanced WMA length and moderate zone cooldown for meaningful reversal zone spacing across typical session moves
4H - Daily : Swing-level flow quality monitoring with longer WMA and normalization lookback for sustained flow readings across multi-session directional moves
Suggested Baseline Configuration:
WMA Length : 80
Volume SMA : 20
Normalization Lookback : 80
Offset (ATR%) : 0.4
Candle Height : 2.0
Show Reversal Zones : Enabled
Zone Cooldown : 31
Max Zones : 3
Show Fuel Candles : Enabled
Show Baseline : Enabled
Show Baseline Glow : Enabled
Color Price Candles : Enabled (requires disabling original chart candles in chart settings)
These suggested parameters should be used as a baseline; their effectiveness depends on the instrument's volatility characteristics, volume behavior, and preferred signal density, so fine-tuning is expected for optimal performance.
Parameter Calibration Notes
Use the following adjustments to refine behavior without altering the core logic:
Fuel candles too tall or too short : Adjust Candle Height to scale the maximum fuel candle height relative to ATR. Lower values produce more subtle fuel visualization, higher values produce more prominent height differences between high and low flow bars.
Fuel candles too close or far from price : Adjust Offset (ATR%) to control the gap between the WMA baseline and the near edge of the fuel candles, adapting visual separation to the instrument's typical ATR range.
Flow score too reactive : Increase Normalization Lookback to smooth the normalization window, requiring more bars to recalibrate the flow range and reducing sensitivity to short-term volume spikes.
Flow score too slow to adapt : Decrease Normalization Lookback for faster recalibration of the flow score range, allowing the system to adapt more quickly to changing volatility and volume conditions.
Too many reversal zones forming : Increase Zone Cooldown to enforce greater bar separation between consecutive zone plants, or reduce Max Zones to limit the total number of active reference levels on the chart.
Reversal zones too narrow or wide : Adjust Zone Height (ATR×) to scale the vertical size of each reversal zone relative to ATR, calibrating zone thickness to the instrument's typical noise range at the target timeframe.
WMA too reactive to price : Increase WMA Length for a smoother baseline that filters minor oscillations and reduces frequency of trend direction changes, producing more stable fuel candle positioning and cleaner reversal zone direction assignments.
Adjustments should be incremental and evaluated across multiple session types rather than isolated market conditions.
Performance Characteristics
High Effectiveness:
Trending markets with clear directional momentum where fuel candle height builds during impulse phases and provides early warning of conviction decay before price reverses
Instruments with consistent volume participation where SMA normalization accurately identifies above-average bars and the flow score reliably differentiates high and low conviction moves
Flow divergence strategies where declining fuel candle height during price extension provides early deterioration signals before conventional indicators confirm reversal
Counter-trend monitoring approaches where reversal zones mark the precise price levels where meaningful opposing flow appeared for use as structural reference in subsequent analysis
Reduced Effectiveness:
Choppy, low-volume markets where body ratios are consistently low and volume normalization produces undifferentiated scores, reducing fuel candle height variation and generating frequent yellow candles without meaningful reversal context
Instruments with highly irregular volume distribution where the SMA normalization baseline is distorted by outlier sessions, producing unreliable flow score rankings across typical bars
Extremely fast-moving markets where large body ratios are consistently present on almost every bar, compressing the flow score range and reducing the visual differentiation between high and low conviction periods
Low-ATR instruments where the fuel candle geometry produces visually imperceptible height differences, requiring manual candle height and offset adjustment to produce meaningful visual scaling
Consolidation and sideways conditions where volume participation is mixed and body ratios are low, producing uniformly short fuel candles and frequent yellow candles without the trend context that makes reversal detection structurally meaningful
Integration Guidelines
Confluence : Combine with BOSWaves structural tools, order block analysis, or momentum oscillators to validate reversal zone interactions and yellow candle events with broader analytical context
Fuel Candle Trend Health : Monitor fuel candle height evolution throughout established trends as a continuous conviction health indicator. Progressively shrinking fuel candles during a sustained trend suggest flow deterioration that may precede reversal before price structure confirms the change.
Yellow Candle Clustering : Single isolated yellow candles within a trend carry less weight than clusters of two or more within a short window. Clusters suggest building counter-trend participation that is approaching the threshold required to challenge the prevailing flow direction.
Zone Freshness : Prioritize recently planted reversal zones over older ones. Fresh zones reflect current session flow dynamics while older zones may have formed under different volume and volatility conditions that are no longer representative.
State Discipline : Maintain directional bias aligned with the current WMA trend state until a confirmed WMA direction change occurs. Yellow candles and reversal zones within an established trend are monitoring signals rather than automatic exit triggers and should be interpreted as context rather than directional commands.
Disclaimer
Volume Flow Zones is a professional-grade flow quality analysis and counter-trend monitoring tool. It uses body-ratio volume flow scoring with rolling normalization and reversal zone detection but does not predict future price movements. Results depend on market conditions, instrument volume characteristics, parameter selection, and disciplined execution. BOSWaves recommends deploying this indicator within a broader analytical framework that incorporates price structure, order flow context, and comprehensive risk management. 지표
지표
Helix Lucky MTF Bias and Breakout DashboardHelix Lucky MTF Trend and Breakout Dashboard
📊 Overview
Helix Lucky MTF Trend and Breakout Dashboard is an overlay indicator designed to organize trend, momentum, breakout context, key levels, and multi-timeframe alignment into one chart-based dashboard.
The purpose of the script is not to combine unrelated indicators into a single display. The script separates market analysis into distinct layers so each component has a specific role:
1. Trend structure
2. Momentum confirmation
3. Breakout context
4. Multi-timeframe alignment
5. Key level awareness
6. Setup scoring
7. Optional visual confirmation tools
The result is a confluence-based workflow that helps traders review whether multiple independent conditions are aligned before making a trading decision.
🧩 How the Main Components Work Together
The script uses moving averages, VWAP, MACD, ZLSMA, UT Bot logic, Supertrend, ADX, RSI, and Opening Range Breakout logic as separate inputs within the same framework.
The moving average group provides basic trend structure by comparing shorter-term and longer-term averages. The default structure uses a fast EMA, medium EMA, and long SMA, but users can configure the moving average types and lengths.
VWAP provides session or higher-period price-location context. It can be anchored to the session, day, week, month, quarter, or year and may be displayed with standard deviation or percentage-based bands.
MACD is used as a momentum confirmation layer. The script includes a minimum separation filter so very small MACD differences can be filtered out instead of being treated the same as stronger momentum shifts.
ZLSMA is optional and can be used as an additional trend-direction filter.
The UT Bot component is used as the primary chart label engine. It uses an ATR-based adaptive trailing stop. The script adjusts the trailing distance using volatility, momentum, and volume conditions, then produces Buy or Sell labels when price crosses the trailing stop and the configured filters allow the signal.
Supertrend provides a separate trend-regime layer. This gives the user a second way to compare the UT Bot label against a broader trend condition.
ADX is used to evaluate whether trend strength is above the user-selected threshold. RSI can be used either in a classic 30/70 bias mode or with custom pullback zones.
The Opening Range Breakout component tracks whether price is above, below, or inside the selected opening range window. This helps separate trend-following conditions from range-bound conditions.
🧠 Why This Is More Than a Simple Mashup
Each component is assigned a different purpose. The script is designed so the same tools are not all treated as equal standalone signals.
Trend tools identify direction.
Momentum tools evaluate confirmation.
Volume and relative volume help evaluate participation.
Opening Range Breakout logic identifies range expansion.
The Bias Table compares selected conditions across multiple timeframes.
The Price Point Dashboard displays important reference levels and live context.
The scoring layer organizes these conditions into a rule-based summary.
This structure allows the script to reduce chart clutter while still showing how the underlying conditions agree or disagree.
🕒 Multi-Timeframe Bias Table
The Multi-Timeframe Bias Table displays up to eight selectable timeframes, including 1 minute, 5 minutes, 15 minutes, 30 minutes, 1 hour, 2 hours, 4 hours, and Daily.
Each row evaluates one condition, such as moving average structure, price relative to VWAP, MACD alignment, Supertrend direction, ZLSMA slope, RSI condition, ADX threshold, Opening Range Breakout status, and longer-period bias.
The table also includes an average agreement reading. This reading is not a prediction and does not represent a win rate. It simply shows how many selected conditions are aligned across the active timeframes.
By default, the script can hide timeframes below the current chart timeframe. This is intended to reduce lower-timeframe noise when viewing higher-timeframe charts.
📍 Price Point Dashboard
The Price Point Dashboard displays reference levels and market context in one location. These can include prior day high, prior day low, prior day close, pivot levels, moving averages, 52-week high, Fibonacci reference levels, VWAP information, Opening Range Breakout status, ATR, gap percentage, relative volume, and other selected dashboard fields.
The dashboard is intended to help users see where price is trading relative to important reference levels without manually adding each level to the chart.
📈 Trend Strength Score
The Trend Strength Score is a rule-based 0 to 100 score that measures how strongly the current bar aligns with selected bullish trend conditions.
The score uses five weighted components:
- EMA alignment
- VWAP location
- MACD alignment
- Supertrend direction
- ADX strength
The score is a summary of internal conditions only. It does not predict future price movement.
🎯 Trade Probability Score
The Trade Probability Score is a rule-based 0 to 100 setup-quality score. It is calculated from twelve weighted factors:
- Multi-timeframe alignment
- EMA stack
- VWAP location
- Price relative to the 200-period moving average
- MACD alignment
- Supertrend direction
- ADX strength
- Relative volume
- Opening Range Breakout status
- Relative strength versus a selected benchmark
- Volatility state
- Position relative to key levels
The score is intended to summarize confluence. A higher score means more of the script’s internal conditions are aligned. It does not mean that a trade will be profitable, and it should not be interpreted as a guaranteed probability of success.
💧 Liquidity Sweep Detection
The script can detect liquidity sweep conditions by checking whether price moves beyond a recent swing high or swing low and then closes back inside that level.
A Sweep High label indicates that price moved above a recent high and then closed back below that level.
A Sweep Low label indicates that price moved below a recent low and then closed back above that level.
These labels are intended to identify possible rejection behavior around recent swing points. They should be used as context, not as standalone trade signals.
⚖️ Relative Strength
The script includes relative strength comparison against configurable benchmark symbols. The default benchmarks are QQQ and SPY.
Relative strength is calculated by comparing the current symbol’s intraday return against the benchmark’s intraday return. A positive value means the current symbol is outperforming the benchmark over that comparison period. A negative value means it is underperforming.
🌡️ Volatility State
The Volatility State feature classifies the current volatility environment as Squeeze, Normal, or Expansion.
This is based on Bollinger Band width compared with Keltner Channel width and recent volatility behavior.
Squeeze indicates compressed volatility.
Normal indicates a standard volatility environment.
Expansion indicates that volatility has increased relative to recent conditions.
This feature is included to help users understand whether price is consolidating, behaving normally, or expanding in volatility.
🕯️ Candlestick Pattern Labels
The script includes optional candlestick pattern labels. These patterns are detected on the same timeframe as the chart. They are not calculated from a separate hidden timeframe.
Optional labels include:
- Bullish Engulfing
- Bearish Engulfing
- Hammer
- Shooting Star
- Morning Star
- Evening Star
- Inside Bar
- Tweezer Top
- Tweezer Bottom
- Doji
- Dragonfly Doji
- Gravestone Doji
- Sweep High
- Sweep Low
These labels are intended as additional context. They should not be treated as standalone entries without reviewing trend, momentum, volatility, and key-level context.
🛑 Suggested Stop Loss and Take Profit Reference Lines
The script can plot suggested stop loss and take profit reference lines after a UT Bot label appears.
The stop line is calculated from internal structure such as the UT Bot stop, Supertrend, VWAP, moving average, Donchian floor, and a minimum ATR-based risk floor depending on settings and context.
Take profit reference lines are based on R-multiple distances from the suggested stop. These are visual planning tools only. They do not place trades, manage positions, or execute orders.
🧭 How to Use the Script
A typical workflow is:
1. Select the chart timeframe and market being reviewed.
2. Review the Multi-Timeframe Bias Table to understand directional alignment.
3. Check whether the chart is trending, ranging, breaking out, or consolidating.
4. Review the Price Point Dashboard for key levels and market context.
5. Watch for a UT Bot Buy or Sell label if labels are enabled.
6. Compare the label direction with Supertrend, MACD, VWAP, ADX, and the Bias Table.
7. Review the Trend Strength Score and Trade Probability Score as confluence summaries.
8. Use the suggested stop and take profit reference lines only as visual planning tools.
9. Apply independent risk management and confirm the setup with your own analysis.
🌍 Timeframes and Markets
The script can be applied to different chart timeframes and TradingView-supported markets. Lower timeframes may produce more signals and more noise. Higher timeframes may produce fewer signals but can provide broader context.
The Multi-Timeframe Bias Table is intended to help users avoid looking at a single timeframe in isolation.
⚠️ Important Limitations
This script is an indicator, not a strategy. It does not place trades, backtest trades, manage orders, or connect to a brokerage account.
The scoring systems are rule-based summaries of current chart conditions. They are not win-rate models, machine-learning predictions, or guarantees of future results.
Signals, labels, and dashboard values can vary by symbol, timeframe, liquidity, volatility, and user settings.
The Bias Table is a live context dashboard and may update while the current bar is forming. This is expected behavior because some values are based on developing bar data.
The “Draw visuals only on bar close” setting gates the UT Bot entry visuals and suggested stop/take-profit drawings to confirmed bars. It does not freeze every live dashboard value while a bar is developing.
Liquidity Sweep labels can be gated to bar close using the Bar Close Only setting.
The script is designed for standard chart analysis. Signals on non-standard chart types may behave differently because those chart types can use synthetic price construction.
No signal, score, table reading, or label should be used as a guarantee of future price movement. Users should apply their own analysis and risk management.
🧾 Credits and Inspiration
This script was inspired by the concept of combining a multi-timeframe bias table, trend labels, and a price-level dashboard into one overlay.
The current script is a ground-up Pine Script v6 implementation with additional architecture, including the rule-based Trade Probability Score, Trend Strength Score, liquidity sweep detection, relative strength comparison, volatility state classification, configurable dashboards, candlestick pattern labels, and suggested risk-reference lines.
The script also uses common technical analysis concepts such as moving averages, VWAP, MACD, RSI, ADX, ATR, Supertrend-style trend logic, and Opening Range Breakout logic. These common concepts are organized into a single decision-support framework rather than presented as separate standalone indicators. 지표
Viprasol Liquidity Trail Matrix with Signal TargetOverview
The Viprasol Liquidity Trail Matrix with Signal Target is a trend-following signal engine that combines a volatility-adaptive trailing "liquidity" band structure with a Cardwell-style RSI regime filter, then turns confirmed pullback-and-continuation events into fully managed trade plans — entry, stop, three scaled targets, break-even logic, and an honest performance read-out. It is built for discretionary traders who want a single tool that answers three questions at once: what is the trend, is momentum backing it, and if a signal fires, exactly where are my entry, stop and targets.
This is an open-source, credited derivative. See the Credits & Originality section at the end — the trailing-matrix and Cardwell-RSI concepts are adapted from prior open-source work under CC BY-NC, with substantial original additions layered on top.
How It Works
Step 1 — Liquidity Trail Matrix (adapted)
A volatility trailing stop (ATR-scaled) defines the active trend and flips only when price closes decisively through it. Around that trailing line the script projects a ladder of "liquidity bands" spaced in ATR units, forming the retest zone price tends to revisit before continuation. In an uptrend the bands sit below price as stacked support; in a downtrend, above price as resistance. Because the spacing is ATR-based, the whole structure widens in volatile conditions and tightens in quiet ones.
Step 2 — Cardwell RSI Regime (adapted)
RSI is classified into a directional regime using Andrew Cardwell's range-rules principle: in a healthy uptrend RSI holds its 40-80 band, in a downtrend it works the 20-60 band. The regime flips bull when RSI thrusts through the upper trigger and bear when it breaks the lower trigger, holding state in between. Signals are only allowed in agreement with the regime, so the momentum context must confirm the trend before anything fires.
Step 3 — Confluence gating (adapted + new)
Before a signal is eligible it must pass a confluence gate: trend agreement, RSI regime agreement, an ADX minimum (chop filter), and an optional higher-timeframe bias pulled non-repainting (previous HTF bar, lookahead off). A minimum confluence score suppresses low-quality setups.
Step 4 — Retest entry + Signal Target (adapted)
When the confluence conditions hold and price pulls back into the band zone then closes back in the trend direction, a signal fires on the confirmed bar. The engine sets a structural stop, then projects TP1/TP2/TP3 as R-multiples of that risk and draws them on the chart with price and percent labels. Break-even logic moves the stop to entry after TP1.
Step 5 — Honest trade management + statistics (new)
Original additions in this release:
- One-trade-at-a-time engine: a trend flip no longer force-closes a trade. A position runs to its stop or final target, and a new entry only opens once the previous one is fully resolved. A reversal toggle restores the old flip-reversal behaviour if preferred.
- Max-bars-in-trade timeout so a lingering position cannot block the engine indefinitely.
- Hide-on-hit targets: each target line and label is removed the instant it is touched, keeping the chart clean.
- Staggered target labels so ENTRY/SL/TP1/TP2/TP3 never overlap.
- Session filter and post-stop cooldown (both optional, off by default).
- Honest performance panel: Avg R and Profit Factor computed on a transparent one-third-scale-out model, plus Max Drawdown in R and best/worst streak — so the win-rate (which counts a trade a win once TP1 is touched) is read alongside true expectancy.
- Suggested position size from an account-size and risk-percent input.
Non-repainting: trend, structure, signals and targets confirm at bar close; higher-timeframe data uses lookahead off on the previous bar.
Key Features
- Volatility-adaptive trailing liquidity-band matrix
- Cardwell RSI regime filter
- ADX chop filter + optional non-repainting HTF bias
- Range-distributed volume profile (POC / Value Area / low-volume nodes)
- Retest-continuation signals with confluence scoring
- Entry / SL / TP1-TP2-TP3 with R-multiple targets, break-even and hide-on-hit visuals
- One-trade-at-a-time management with optional reversal, timeout, session filter and post-stop cooldown
- Honest stats: win rate, Avg R, Profit Factor, Max Drawdown (R), streak, suggested size
- Multi-section dashboard, trend-tint candles, and a full alert suite with optional webhook JSON
How to Use
1. Add to any liquid symbol and timeframe. Confirm the dashboard reads a clear trend and RSI regime.
2. Wait for a LONG/SHORT marker — it only fires on a confirmed retest that passed the confluence gate. The number on the marker is the confluence score.
3. Trade the drawn plan: entry, stop, and TP1/TP2/TP3. The dashboard mirrors the live levels and, once trades close, shows Avg R / Profit Factor / Max DD so you can judge the edge honestly.
4. Tune selectivity with ADX Minimum and Min Score; tune trade behaviour with the reversal, timeout, session and cooldown settings.
Settings
- Trend Engine: ATR length, trail factor, band count and spacing
- Signals: min score, retest window, cooldown, integration mode, reversal toggle, session filter, post-SL cooldown
- RSI Regime: length, bull/bear triggers, confirm bars, integration mode
- Risk Management: SL mode, break-even, max bars in trade, account size, risk %
- Signal Targets: R-multiples for TP1/TP2/TP3
- Volume Profile / HTF / Dashboard / Colors: display and behaviour toggles, all with tooltips
Alerts
Dynamic alerts (ticker, timeframe, price, score, levels, RSI, regime) for: Long entry, Short entry, TP1/TP2/TP3 hit, break-even, stop-out, reversal, trend flips, and regime shift. Entry alerts can emit webhook-ready JSON.
Limitations & Disclaimer
This is an analysis and trade-planning tool, not a promise of profit. The built-in statistics are a session-level model (they reset on chart reload), assume idealised fills with no slippage or commission, and use a one-third-scale-out assumption for Avg R — real results differ. Signals confirm at bar close and do not repaint historically, but the still-forming bar is provisional until it closes. No indicator predicts the future; always combine with your own risk management. Nothing here is financial advice.
Credits & Originality (CC BY-NC 4.0)
This script adapts and builds upon prior open-source work and is published open-source, free, for non-commercial use, with attribution as required by the licence:
- "Liquidity Trail Matrix" by WillyAlgoTrader — the trailing liquidity-band structure concept.
- "Cardwell Range Analyze" by MarkitTick — the Cardwell RSI range-regime concept.
Changes made by Viprasol (this version): combined the two engines into one workflow and added the confluence gate, non-repainting HTF bias, range-distributed volume profile, R-multiple Signal Targets with break-even and hide-on-hit visuals, one-trade-at-a-time management with reversal toggle / max-bars timeout / session filter / post-stop cooldown, the honest statistics panel (Avg R, Profit Factor, Max Drawdown R, streak) and suggested position size, plus the multi-section dashboard and dynamic/webhook alerts.
Licence: Creative Commons Attribution-NonCommercial 4.0 (creativecommons.org). Educational, non-commercial use only. Not financial advice.
지표
Liquidity Trail Matrix [WillyAlgoTrader]📊 Liquidity Trail Matrix (LTM) is an overlay trend-following system that combines a four-band proportional ATR trailing stack, a 5-factor retest quality score (0–100), a non-repainting higher-timeframe bias filter, a range-distributed volume profile of the current trend segment (POC / Value Area / HVN / LVN), and a full trade engine with wick-anchored stops, three R-multiple targets, break-even automation and honest session statistics — all in one indicator.
The core insight: a single trailing stop line gives you a binary answer — "in trend" or "flipped". But price interacts with the liquidity zone around the trail in layers: shallow pullbacks, deep sweeps, and full reversals all look different. LTM replaces the single line with a graded four-band matrix, scores every pullback-and-reclaim by depth, candle quality, volume, higher-timeframe alignment and trend maturity, and overlays where volume actually accumulated during the current trend leg — so you can see whether a retest is landing on real acceptance (HVN / POC) or falling into a volume vacuum (LVN).
Works on all markets (crypto, forex, stocks, indices, commodities) and all timeframes. On zero-volume symbols the profile automatically switches to a range-weighted proxy.
🧩 WHY THESE COMPONENTS WORK TOGETHER
A trailing stop alone tells you the trend direction but nothing about entry quality — every touch of the line looks the same. A volume profile alone shows you where volume traded but has no concept of trend regime or entry timing. A retest signal alone fires on any bounce, whether it happens in a mature trend with higher-timeframe support or in the dying bars of an exhausted move. Used separately, these tools leave you guessing.
LTM chains them into one pipeline:
ATR band stack → trend flip detection → pullback depth measurement → 5-factor quality scoring → HTF bias confirmation → trade engine (entry / SL / TP / BE) → segment volume profile context → session outcome tracking
The band stack defines the trend and, critically, grades how deep each pullback penetrates (Band 1 = shallow, Band 4 = extreme). That depth becomes the largest single component of the retest score. The score is then adjusted by the reclaim candle's close location, relative volume, trend age, and the higher-timeframe EMA-50 bias — five independent dimensions that a plain trailing stop cannot see. Every confirmed signal is handed to the trade engine, which places a structure-aware stop, three risk-multiple targets and manages break-even. Meanwhile the volume profile is rebuilt from the exact flip bar of the current trend, so POC, Value Area and LVN levels always describe this leg — telling you whether your entry sits on volume acceptance or in a vacuum. Finally, every closed trade feeds the on-chart statistics, so the dashboard shows how this exact configuration has behaved on this exact chart.
Remove any link and the chain breaks: without band depth there is no meaningful score; without the score every bounce is a signal; without the segment-anchored profile the volume context is stale; without the trade engine the signals have no defined risk; without stats you never learn whether the settings fit the instrument.
🔍 WHAT MAKES IT ORIGINAL
1️⃣ Proportional four-band trail geometry — spacing that scales with width.
Most multi-line trails use fixed offsets (base, base+1, base+2 ATR). LTM computes every band as a proportion of the base multiplier:
Band K distance = base × (1 + K_offset × step), giving four multipliers:
— m1 = base
— m2 = base × (1 + step)
— m3 = base × (1 + 2 × step)
— m4 = base × (1 + 3 × step)
With the default Balanced preset (base 4.0, step 0.25) that yields 4.0 / 5.0 / 6.0 / 7.0 ATR. Because spacing is proportional, the geometry of the stack stays visually and behaviorally consistent whether you run tight Scalping bands (2.5 × ATR, step 0.20) or wide Deep Trend bands (6.0 × ATR, step 0.30). Each band ratchets independently (max-lock in uptrends, min-lock in downtrends) and never loosens.
Why this matters: fixed +1/+2/+3 offsets make the stack proportionally "fat" at small base values and "thin" at large ones — proportional spacing keeps pullback depth grading meaningful at any width.
2️⃣ Selectable flip depth — you choose which band defines a reversal.
The trend flips only when price closes beyond a user-chosen band from the previous bar: Fast (Band 2), Balanced (Band 3, default) or Deep (Band 4). Comparing against the previous bar's band value prevents same-bar feedback between the flip and the band update. A warm-up guard (max(3 × ATR length, 60) bars) suppresses all signals until the ATR stack is statistically stable.
Why this matters: flip sensitivity becomes an explicit, single-purpose setting instead of an accidental side effect of band width.
3️⃣ 5-factor retest quality score (0–100) — every signal explains itself.
When price touches any band and then reclaims Band 1 with a directional candle inside the retest window (default 8 bars), LTM computes:
— 📐 Pullback depth (max 25) : Band 2 touch = 25, Band 3 = 18, Band 1 = 15, Band 4 = 10. The maximum touched depth during the pending window is used. Note the deliberate non-linearity: Band 2 scores highest — deep enough to reset liquidity, not deep enough to threaten the trend. Band 4 sweeps score lowest because they often precede full reversals.
— 🕯️ Reclaim candle (max 20) : close location value CLV = (close − low) / (high − low) for longs (mirrored for shorts). CLV > 0.7 → 20 points, > 0.5 → 12, else 5. A reclaim that closes near its extreme shows commitment.
— 📊 Volume (max 20) : current volume vs. the previous bar's 20-period SMA — the spike must not dampen itself by inflating its own average. Volume > 1.2 × baseline → 20, > 1.0 × → 12, else 5. Symbols without volume data receive a neutral 12.
— 🧭 HTF bias (max 20) : aligned with the higher-timeframe EMA-50 direction → 20, no HTF data → 10, against bias → 0.
— ⏳ Trend age (max 15) : 10–150 bars into the trend → 15 (mature, established), under 10 bars → 8 (unproven), over 150 → 5 (aging).
Signals print only when the total meets the Min Retest Score (default 80) and the shared anti-whipsaw cooldown (default 5 bars, deliberately shared across both directions) has elapsed. Every diamond label shows the score, and its tooltip breaks down all five components — no black-box signals.
4️⃣ Non-repainting higher-timeframe bias.
HTF bias compares the higher timeframe's previous closed bar close against its EMA-50, requested with confirmed-bar indexing so the value never changes retroactively. Bias is a soft score component (0/10/20 points), not a hard filter — counter-bias signals can still print if the other four factors are strong enough.
5️⃣ Segment volume profile — range-distributed, anchored to the live trend leg.
The profile is rebuilt on the last bar from the exact flip bar of the current trend (capped by Max Profile Bars, default 500) — no arbitrary lookback padding. Accumulation is range-distributed: each bar's volume is split across every price bin its high–low range overlaps, weighted by overlap fraction:
bin_volume += bar_volume × overlap(bin, bar_range) / (bar_high − bar_low)
This shows where volume actually traded, not where bars happened to close. From the histogram LTM derives:
— 🟡 POC — the highest-volume bin of the segment, drawn with price and volume label. The strongest magnet / defense level of this leg.
— 📦 Value Area (70%) — expanded symmetrically from POC by always adding the larger neighboring bin until 70% of segment volume is enclosed. VAH / VAL edges act as dynamic S/R.
— 📈 HVN — local volume peaks ≥ 0.55 × POC volume (configurable): acceptance shelves where price tends to stall.
— 🕳️ LVN — local troughs ≤ 0.30 × POC volume inside the Value Area (configurable): volume vacuums that price tends to travel through quickly. Each LVN is labeled and feeds a dedicated break alert.
On symbols with no volume feed (forex, some CFDs) the engine substitutes a true-range proxy per bar, so the profile stays structurally meaningful instead of failing.
6️⃣ Trade engine with strict signal-trade parity.
Every confirmed signal (scored retest or trend flip) acts, with unambiguous rules:
— flat → open a position in the signal direction
— opposite position → reverse (close and enter the new direction on the same bar)
— same-direction position → ignored (no pyramiding, no stop tampering)
There are exactly four closure paths: SL hit, break-even stop-out, TP3 touch, or reversal by an opposite signal. Hit detection uses three safety guards: an entry-bar guard (SL/TP are never evaluated on the entry bar itself), a pessimistic same-bar rule (if a bar touches both SL and a TP, the SL wins — statistics never get the benefit of the doubt), and a break-even latency rule (a stop moved to break-even mid-bar cannot trigger on that same bar — the engine checks against the bar-start stop value).
7️⃣ Wick-anchored stop-loss mode.
Two SL modes at entry:
— Wick-Anchored (default) : SL = signal bar's wick extreme ± 0.25 × ATR buffer, with a minimum distance of 0.5 × ATR enforced. The stop hides behind the structure that produced the signal instead of floating at an arbitrary distance.
— ATR : classic fixed SL Multiplier × ATR from entry.
TP1 / TP2 / TP3 are pure risk multiples of the actual SL distance (defaults 1R / 2R / 3R), so the reward structure automatically adapts to how much room the stop needed. Four risk presets (Conservative 2.5 × ATR SL, TP 1/2/4R; Balanced 1.5, TP 1/2/3R; Aggressive 1.0, TP 1.5/2.5/4R; Scalping 0.8, TP 0.8/1.5/2R) plus full Custom control. Optional break-even moves the stop to entry after TP1.
8️⃣ Honest session statistics with a fixed win definition.
A closed trade counts as a win only if TP1 was touched before closure — including break-even stop-outs after TP1 (you banked at least 1R or protected the position). Everything else is a loss, including reversals that never reached TP1. The dashboard shows closed trades, W/L, win rate with a ▰▱ gauge, and a "Form" strip of the last 10 outcomes. Stats are session-scoped and reset on chart reload — this is transparent live tracking of the current settings on the current chart, not a backtest report.
9️⃣ Trend P&L tracker and theme-aware visual system.
An optional floating label follows price in real time and shows the directional % move since the current trend flip (a falling bear trend shows positive %), anchored by a dotted baseline at the trend start price. The label turns red when the trend is under water. The entire visual layer — band transparencies, heatmap fills, dashboard, profile, SL/TP palette — has separate Dark and Light calibrations (Auto-detected from the chart background), because bright hues that look right on dark charts wash out on white ones. TP lines recolor to solid teal with a ✓ when touched; the SL line dims and the entry label annotates "→ SL (BE)" when break-even activates. SL/TP lines persist after the trade closes as a visual record until the next entry replaces them.
⚙️ HOW IT WORKS — CALCULATION FLOW
Step 1 — Band geometry: The preset (or Custom inputs) resolves the base multiplier and proportional step; four multipliers m1–m4 are derived and multiplied by ATR (default length 13).
Step 2 — Ratcheting trail: In an uptrend each band only rises (max-lock); in a downtrend only falls (min-lock). On a flip the whole stack re-seeds on the opposite side of price.
Step 3 — Flip detection: A close beyond the previous bar's value of the chosen flip band (2/3/4) reverses the trend state. Flip labels print on confirmed bars after the warm-up period.
Step 4 — Pullback tracking: Any touch of Band 1–4 against the trend arms a pending retest with its maximum depth, valid for the retest window; pendings decay each bar and are voided on a flip.
Step 5 — Reclaim and scoring: A directional close back beyond Band 1 triggers scoring: depth (25) + candle (20) + volume (20) + HTF bias (20) + trend age (15). Score ≥ threshold and cooldown elapsed → confirmed signal on bar close.
Step 6 — Trade engine: The signal opens or reverses a position; SL is placed (wick-anchored or ATR), TP1–TP3 are projected as risk multiples; break-even, TP recolors and the four closure paths are managed bar by bar with pessimistic resolution.
Step 7 — Segment profile: On the last bar the profile is rebuilt from the flip bar: range-distributed accumulation → POC → 70% Value Area expansion → HVN/LVN detection → drawing.
Step 8 — Reporting: The dashboard updates trend state, signal state, profile levels, live trade card and session statistics; alerts fire on bar close in within-bar chronological order (management → closures → reversal → entries → info).
📖 HOW TO USE
🎯 Quick start:
1. Add the indicator to your chart and pick a Band Width Preset: Scalping for 1–15M, Balanced for most timeframes, Deep Trend for D–W position trading.
2. Set the Higher Timeframe Bias one or two steps above your chart (e.g. 1H while trading 15M).
3. Choose a Risk Preset that matches your style, or leave Balanced.
4. Watch the dashboard: Trend + HTF Bias aligned means you only consider signals in that direction with full conviction; the retest diamonds do the timing.
5. After 15–20 closed trades, read the Stats section and tune Min Retest Score up (fewer, cleaner signals) or down (more signals) for your instrument.
👁️ Reading the chart:
— 🟢 / 🔴 Band stack + heatmap = the liquidity trail zone; the deeper the fill, the closer price is to a trend flip.
— ◆ diamond with a number = confirmed scored retest entry (the number is the 0–100 quality score; hover the tooltip for the full component breakdown).
— ▲ / ▼ FLIP = confirmed trend reversal through the chosen flip band.
— Long ▲ / Short ▼ = trade entry taken by the engine on a flip (printed when there is no retest diamond on the same bar, so every entry is visibly marked).
— ENTRY / SL / TP1–TP3 lines = the live trade card; TP lines turn solid teal with ✓ when touched; a dimmed SL with "→ SL (BE)" on the entry label means the stop sits at break-even.
— 🟡 POC line = highest-volume price of the current trend leg; dashed VAH/VAL = Value Area edges; LVN labels = volume vacuums inside the Value Area.
— ▲ +X.XX% floating label (optional) = real-time directional P&L of the current trend since the flip.
📊 Dashboard fields:
— Trend / Age : direction of the band stack and bars since the last flip.
— HTF Bias : higher-timeframe EMA-50 direction (soft score component).
— Signal : current engine position — LONG, SHORT or Wait.
— Last signal : most recent event, its score, and bars elapsed.
— POC / VA High / VA Low : live segment profile levels.
— Entry / SL / TP1–TP3 / R:R / SL Dist % : the open trade card ("BE @" marks a break-even stop; ✓ marks touched targets); collapses to one row when flat.
— Trades / W-L / Win rate / Form : session statistics; ▰ = win, ▱ = loss, newest on the right.
🔧 Tuning guide:
— Too many weak signals: raise Min Retest Score toward 85–90, or increase Signal Cooldown.
— Too few signals: lower Min Retest Score toward 55–65, or widen the Retest Window to 10.
— Whipsaw flips on a choppy symbol: switch Flip Band to Deep (Band 4) or move to the Deep Trend preset.
— Flips lag too far behind on fast moves: Flip Band → Fast (Band 2) or the Scalping preset.
— Stops feel too tight / too wide: switch SL Mode between Wick-Anchored and ATR, or change the Risk Preset; on volatile symbols prefer Conservative.
— Profile looks coarse on long trends: raise Profile Rows to 50+ and Max Profile Bars toward 800.
— Counter-trend retests keep printing: set an explicit Higher Timeframe Bias — counter-bias signals lose 20 points and rarely clear a high threshold.
⚙️ KEY SETTINGS
⚙️ Trend Engine:
— Band Width Preset (default Balanced): Scalping 2.5 × ATR / step 0.20, Balanced 4.0 / 0.25, Deep Trend 6.0 / 0.30, or Custom.
— Base Multiplier (default 5.0) and Band Spacing (default 0.25): manual geometry, active in Custom preset only.
— ATR Length (default 13): lookback for band-width ATR.
— Source (default close): price series for trailing and flips.
— Flip Band (default Balanced / Band 3): which band a close must breach to flip the trend.
— Higher Timeframe Bias (default empty = chart TF): HTF for EMA-50 bias scoring.
🎯 Signals:
— Min Retest Score (default 80): 0–100 quality threshold for retest diamonds.
— Retest Window (default 8 bars): how long a band touch stays armed for a reclaim.
— Signal Cooldown (default 5 bars): minimum spacing between signals, shared across directions.
📦 Volume Profile:
— Show Segment Volume Profile (on), Profile Rows (30), Profile Width (34 bars), Max Profile Bars (500).
— Show POC (on), Show Value Area 70% (on), Show HVN / LVN Levels (on), Profile Label Size (Small).
🛡️ Risk Management:
— Risk Preset (default Balanced): Conservative / Balanced / Aggressive / Scalping / Custom.
— SL Mode (default Wick-Anchored): structure-aware wick stop vs. fixed ATR distance.
— ATR Length (Risk) (14), SL Multiplier (1.5), TP1 / TP2 / TP3 Multipliers (1.0 / 2.0 / 3.0 × risk) — Custom preset.
— Break-Even After TP1 (on): stop moves to entry once TP1 is touched.
— Show SL/TP Lines / Labels / % Distance and per-line style controls (Entry dotted, SL solid, TP dashed by default).
🎨 Visual:
— Theme (Auto / Dark / Light), Show Trail Bands , Show Band Heatmap Fill , Show Retest Signals , Show Flip Labels , Show Trend P&L Tracker (off by default), label size controls, watermark toggle, Bull / Bear color pickers.
📊 Dashboard:
— Show Dashboard (on), position (5 anchors), font size, and independent toggles for the Market, Profile, Trade and Stats sections.
🔧 Advanced:
— HVN Threshold (default 0.55 × POC volume): minimum relative volume for an acceptance node.
— LVN Threshold (default 0.30 × POC volume): maximum relative volume for a vacuum node.
🔔 ALERTS
— 🟢 LONG ENTRY / 🔴 SHORT ENTRY — ticker, timeframe, price, signal score, SL, TP1–TP3, R:R. Plain text or JSON webhook format ({"action":"buy"...}) for bot integrations.
— 🎯 TP1 / TP2 / TP3 HIT — target touches with prices (optional).
— 🛡️ BREAK-EVEN — stop moved to entry after TP1 (optional).
— 🛑 SL HIT / BE STOP-OUT — stop-loss trigger with direction, entry and stop prices; a distinct BE variant when the stop was at break-even.
— 🔄 REVERSAL — position reversed by an opposite signal, with the closed trade's outcome (after / before TP1).
— ▲ / ▼ TREND FLIP — informational flips that did not open or reverse a trade.
— ⚡ LVN BREAK — a close crossing a Low Volume Node of the live segment profile (price entering a volume vacuum often accelerates).
All alerts fire once per bar close. Alerts are ordered by within-bar chronology: trade management → closures → reversal → new entries → informational.
⚠️ IMPORTANT NOTES
— 🚫 No repainting. All signals, entries and alerts are confirmed on bar close (barstate.isconfirmed). The trend flip compares against the previous bar's band value. The HTF bias uses the higher timeframe's previous closed bar, so its value never changes retroactively. A warm-up guard suppresses signals for the first max(3 × ATR length, 60) bars.
— 📐 The segment volume profile is a live construct. It is redrawn on the last bar for the current trend leg and evolves as the leg grows — this is by design (it describes the present segment), and historical profile states are not preserved.
— 📊 Session statistics reset on chart reload. They are transparent live tracking of the current settings on the current symbol and timeframe — not a backtest, and past performance does not guarantee future results.
— ⚖️ Same-bar ambiguity is resolved pessimistically. If one bar touches both a stop and a target, the stop wins in the statistics. Intrabar sequence cannot be known from OHLC data, so the engine never gives itself the benefit of the doubt.
— 🕳️ Zero-volume symbols use a range-weighted proxy for the profile, and the volume score component defaults to a neutral value — profile shapes on such symbols reflect price dwell time, not traded volume.
— 🛠️ This is an analysis and trade-planning tool, not an automated trading bot. It detects trend state, scores retests, projects stops and targets, and tracks outcomes — trade decisions remain yours.
— 🌐 Works on all markets and timeframes. 지표
Median Gaussian Trend | NAL1. Overview
Median Gaussian Trend | NAL is an adaptive trend-band indicator built from a median price baseline, Gaussian smoothing, and Gaussian-weighted volatility bands.
The indicator is designed to filter raw price movement into a smoother directional structure. Instead of using a simple moving average or standard deviation channel, it first compresses price through a median calculation, then applies Gaussian smoothing to create a cleaner baseline. Around that baseline, it builds adaptive upper and lower bands using Gaussian-weighted deviation.
The result is a robust, smooth trend regime tool that identifies when price breaks outside its filtered volatility structure.
2. Calculation
The indicator starts by calculating a median of the selected source. This helps reduce noise by focusing on the central value of recent price action instead of reacting directly to every candle.
That median value is then passed through a Gaussian filter. The Gaussian filter gives more structured weighting to the lookback window, producing a smoother baseline while still preserving directional movement.
The indicator then calculates a Gaussian-weighted deviation around the smoothed median baseline. This creates a custom volatility measurement that is more aligned with the filtered baseline rather than raw price alone.
The upper and lower bands are then built around the Gaussian-smoothed median. The script allows separate upper and lower multipliers, which lets the band structure be asymmetric if needed.
upper = median_base + sd_range * sd_mul
lower = median_base - sd_range * sd_mulb
A bullish state triggers when price closes above the upper band. A bearish state triggers when price closes below the lower band. When price remains inside the bands, the previous regime is held.
3. Key Features
Median-based price filtering.
Gaussian-smoothed baseline.
Gaussian-weighted volatility deviation.
Adaptive upper and lower trend bands.
Separate upper and lower band multipliers.
State-based candle coloring, band coloring, glow effect, and directional fills.
4. Use
Median Gaussian Trend is designed to identify when price escapes its smoothed median-volatility structure. A close above the upper band reflects bullish expansion, while a close below the lower band reflects bearish expansion.
The median component helps reduce noisy price behavior, while the Gaussian smoothing and deviation engine create a more refined trend envelope. This makes the indicator useful for reading directional structure without relying on a raw moving average channel.
This indicator is best used as a specialized module within a complete strategy framework. Its role is to isolate a filtered volatility-trend layer of price behavior, where the real value comes from how the signal is integrated into a broader process for regime, timing, and execution.
지표
Trend Bias Guide MATrend Bias Guide MA
OVERVIEW
Trend Bias Guide MA is a smoothed reference line that shows which side (bullish or bearish) has been dominating recent price action, and helps spot early signs of trend exhaustion through divergence between price and candle-body pressure.
Unlike a standard moving average, this line is not derived from price itself. It is derived from the net directional pressure of individual candles over a lookback window, then projected onto the chart at a visual offset from price using ATR, so it never overlaps the candles.
WHAT IT IS BUILT FROM
For every candle in the lookback window (default: 50 candles), the script measures (close − open). This value is positive for a bullish candle and negative for a bearish candle, and its magnitude reflects the size of that candle's body.
These values are summed across the whole lookback window into a single number, referred to here as the net bias:
net bias = Σ (close − open) over the last N candles
This sum captures two distinct effects at once:
1. Count imbalance: whether there were more bullish or more bearish candles in the window.
2. Size imbalance: whether the bullish or bearish candles had larger bodies on average.
Both effects move price in the same underlying way, and summing (close − open) candle by candle combines them automatically, without needing to calculate them separately. If the net bias is positive, bullish pressure has dominated the window; if negative, bearish pressure has dominated.
HOW THE LINE IS DRAWN
- If the net bias is negative (bearish), the line is plotted above price, at a distance of (ATR × multiplier) above the current high.
- If the net bias is positive (bullish), the line is plotted below price, at a distance of (ATR × multiplier) below the current low.
- ATR length and multiplier are both adjustable inputs (defaults: ATR length 14, multiplier 1.0), and control how far the line sits from price.
- The raw level is then smoothed with a simple moving average (default length: 10) to reduce short-term noise and produce a cleaner, more continuous line instead of a jagged one.
- The line changes color to match its current bias: green when below price (bullish), red when above price (bearish).
INPUTS
- Lookback Length (default 50): number of candles used to calculate the net bias.
- ATR Length (default 14): period used for the ATR calculation that sets the offset distance.
- ATR Multiplier (default 1.0): scales the offset distance from price.
- Smoothing Length (default 10): period of the moving average applied to the final line.
HOW TO INTERPRET IT
- Green line below price: bullish pressure has dominated over the lookback window.
- Red line above price: bearish pressure has dominated over the lookback window.
- This is a trailing, lookback-based measure. Like any indicator built on a moving window, it reacts with a delay relative to the current candle — it will not flip instantly at the exact start of a new trend, and generally needs enough new candles in the new direction to outweigh the older ones still inside the window.
HOW TO USE IT
This indicator is designed as a contextual reference, not as a standalone entry or exit signal. Two practical uses:
1. Trend context: at a glance, see whether recent price action has been dominated by bullish or bearish candles, without needing to eyeball candle sizes manually.
2. Divergence / exhaustion warning: watch for cases where price is trading above a rising average (e.g., an EMA, not included in this script) while this line is still red (or below a falling average while the line is still green). This mismatch between price direction and underlying candle pressure can flag weakening trend conviction. In backtesting on XAUUSD (17 years of hourly data), this type of divergence was associated with a meaningfully higher chance of the trend reversing within the following 24–72 hours compared to the general baseline, with the effect strongest in the 24-hour window and gradually fading over longer horizons.
LIMITATIONS
- This is a descriptive/contextual tool, not a predictive trading signal on its own. It shows what has already happened over the lookback window, and any forward-looking use (such as the divergence behavior described above) carries no guarantee of repeating in the same way in the future or on other symbols/timeframes.
- Being lookback-based, the line inherently lags price, in the same way any moving average or rolling calculation does.
- It does not include stop-loss, take-profit, or position-sizing logic of any kind. It is a visual reference only.
- Backtested divergence statistics referenced above were derived from historical XAUUSD data and should not be assumed to hold with the same magnitude across all instruments, timeframes, or market regimes. Users should validate behavior on their own instrument and timeframe before relying on it. 지표
지표
EMA Pro+ Suite# EMA Pro+ Suite
**A multi-layer EMA confluence framework for reading market state at a glance.**
---
## What It Is
EMA Pro+ Suite is an overlay indicator built around three exponential moving averages — a Fast (10), Mid (20), and Slow (50) EMA — organized into a structured three-layer state engine that tells you the current market regime, momentum direction, and whether price is in or out of alignment with that regime. Rather than treating each EMA in isolation, the suite reads them together as a system and surfaces a single, coherent market state at all times.
A corner dashboard table updates in real time, giving you an instant read on bias, momentum, alignment, EMA slopes, and price extension — without having to scan the chart manually.
---
## How It Works
The indicator evaluates three distinct layers on every bar:
**Layer 1 — Bias (Trend Regime)**
Defined by price relative to the 50 EMA. Price above = bullish bias. Price below = bearish bias. This is the macro filter — it determines which direction setups should be taken in.
**Layer 2 — Momentum**
Defined by the 10 EMA relative to the 20 EMA. When the fast EMA is above the mid EMA, momentum is bullish. When below, momentum is bearish. Momentum alignment with bias is the confirmation layer.
**Layer 3 — Price vs Fast EMA**
When bias and momentum are aligned but price is on the wrong side of the 10 EMA, the indicator flags a potential pullback or exhaustion condition. In a full bull regime, price dipping below the 10 EMA may represent a high-quality entry opportunity — or an early warning of trend exhaustion. Context determines which.
**Slope Engine**
Each EMA is evaluated for slope using a configurable lookback. RISING / FLAT / FALLING is displayed per EMA in the dashboard. A momentum flip on flat EMAs carries significantly less weight than one on rising or falling EMAs — this is critical for filtering out noise in ranging conditions.
**Price Distance from 50 EMA**
Tracks how extended price is from the slow EMA as a percentage. Large positive or negative readings flag mean reversion risk.
**Bar & Background Coloring**
- Green background + green bars = full bull alignment
- Red background + red bars = full bear alignment
- Yellow bars = conflicting bias and momentum (mixed / transitional state)
- Aqua bars = bull regime, price pulling back below 10 EMA
- Fuchsia bars = bear regime, price popping above 10 EMA
**Cross Signals**
- `M↑` (green) — 10 EMA crossed above 20 EMA in bull zone. Aligned, higher conviction.
- `M↓` (red) — 10 EMA crossed below 20 EMA in bear zone. Aligned, higher conviction.
- `M↑ 🐻` (orange) — Bullish momentum flip firing in bear zone. Counter-trend, lower conviction.
- `M↓ 🐂` (orange) — Bearish momentum flip firing in bull zone. Counter-trend, lower conviction.
**Multi-Timeframe Support**
All three EMAs can be calculated on a higher timeframe and plotted on the current chart. Use this to anchor your bias to the HTF structure while reading entries on a lower timeframe.
---
## Possible Ways to Use It
**Trend Following**
Wait for full alignment — green background, green bars, all three slopes RISING. Only look for long entries. Use the 10 EMA pullback (aqua bars) as a potential entry trigger. Reverse logic for shorts.
**Momentum Flip Entries**
Use aligned `M↑` / `M↓` signals (green/red) as entry triggers when bias and slope confirm. Discard or fade counter-trend orange signals unless you have a specific reason to trade against the regime.
**Regime Filter for Other Systems**
Use the bias layer (price vs 50 EMA) as a filter for another strategy. Only take long signals from your primary system when EMA Pro+ shows bull bias, and vice versa.
**HTF Confluence**
Set the EMA Timeframe to a higher timeframe (e.g. 4H or Daily) while trading on a 15m or 1H chart. The dashboard will show the HTF regime, giving you a structural anchor for your intraday reads.
**Avoiding Chop**
When all three slopes read FLAT and bars are yellow (mixed alignment), the market is in a transitional or ranging state. Consider standing aside or reducing position size until a clear regime re-establishes.
**Mean Reversion Awareness**
When Dist 50 shows a large positive or negative reading, price is extended from the slow EMA. In trending markets this can persist — but it raises the bar for adding to positions and flags potential snapback risk.
---
## Settings
| Setting | Description |
|---|---|
| EMA Timeframe | Blank = current chart timeframe. Enter any TF (e.g. 60, 240, D) for MTF mode. |
| Fast / Mid / Slow EMA Length | Default 10 / 20 / 50. Fully adjustable. |
| Slope Lookback | Number of bars used to calculate EMA slope. Increase on lower timeframes to reduce flat readings. |
| Show EMA Lines | Toggle the three EMA plots. |
| Show Bias Background | Toggle the green/red background tint. |
| Color Bars by State | Toggle bar coloring. |
| Show Cross Signals | Toggle M↑ / M↓ labels on chart. |
| Show Dashboard Table | Toggle the corner HUD. |
| Table Position | Top Right / Top Left / Bottom Right / Bottom Left. |
| Bar Close Reminder Alert | Fires a reminder alert on every bar close to check the setup. |
---
## Alerts
- Momentum Flip Bullish — Bull Zone (aligned)
- Momentum Flip Bullish — Bear Zone (counter-trend)
- Momentum Flip Bearish — Bear Zone (aligned)
- Momentum Flip Bearish — Bull Zone (counter-trend)
- Price Reclaimed 50 EMA (bias flipped bullish)
- Price Lost 50 EMA (bias flipped bearish)
- Bull Pullback Signal (bull regime, price below 10 EMA)
- Bear Pullback Signal (bear regime, price above 10 EMA)
- Bar Close Reminder
---
## Disclaimer
This indicator is provided for educational and informational purposes only. It does not constitute financial advice, investment advice, or a recommendation to buy or sell any asset. All trading involves substantial risk of loss. Past performance of any signal, strategy, or system is not indicative of future results.
EMA Pro+ Suite is a tool to assist with technical analysis — it does not predict price, guarantee accuracy, or remove the inherent uncertainty of financial markets. No indicator eliminates risk. You are solely responsible for your own trading decisions.
Always conduct your own research, apply proper risk management, and consider consulting a licensed financial professional before making any trading decisions. Only trade with capital you can afford to lose. 지표
