Delta Pressure Index [JOAT]

Delta Pressure Index [JOAT]

Introduction

The Delta Pressure Index is an advanced open-source volume analysis indicator that deconstructs order flow into actionable pressure metrics, combining volume delta estimation, absorption zone detection, smart money divergence analysis, and institutional order block identification. This indicator transforms raw volume data into a comprehensive pressure measurement system that reveals the true balance of power between buyers and sellers.

Unlike basic volume indicators that simply display volume bars, this system analyzes the internal structure of volume to identify buying and selling pressure, detect institutional absorption patterns, recognize smart money positioning through divergences, and map order blocks where large players have established positions. The indicator is designed for traders who understand that volume precedes price and that institutional footprints can be detected through systematic pressure analysis.

Why This Indicator Exists

This indicator addresses a critical gap in retail volume analysis: the ability to measure directional pressure and institutional activity in real-time. While exchange-provided volume data shows total activity, it doesn't reveal who is winning the battle between buyers and sellers. The Delta Pressure Index solves this by:

• Volume Delta Estimation: Separates buying volume from selling volume using candle structure and wick analysis

• Pressure Index Calculation: Normalizes delta to a -100 to +100 scale showing relative pressure strength

• Absorption Zone Detection: Identifies when high volume produces minimal price movement, indicating institutional accumulation or distribution

• Smart Money Divergence: Compares volume-weighted price to actual price to detect hidden institutional positioning

• Order Block Mapping: Marks zones where institutional orders have been placed based on volume and price action patterns

• Multi-Timeframe Pressure: Analyzes pressure alignment across multiple timeframes for conviction measurement

• Cumulative Delta Tracking: Monitors net buying/selling pressure over time to identify accumulation and distribution phases


Each component provides unique intelligence about market microstructure. Delta estimation shows directional bias, pressure index quantifies strength, absorption detection reveals institutional activity, divergences expose hidden positioning, order blocks mark support/resistance zones, and cumulative delta tracks longer-term institutional flow.



Core Components Explained

1. Enhanced Volume Delta Estimation

The indicator uses advanced candle structure analysis to estimate buying and selling volume:

barRange = high - low
bodySize = math.abs(close - open)
wickUp = high - math.max(open, close)
wickDown = math.min(open, close) - low

buyVolume = close > open ?
    volume * ((close - open + wickUp * 0.5) / barRange) :
    close < open ?
    volume * ((wickUp + bodySize * 0.3) / barRange) :
    volume * 0.5

sellVolume = volume - buyVolume
delta = buyVolume - sellVolume

This calculation considers:
- Bullish candles (close > open): Majority of volume is buying, with upper wick getting 50% weight
- Bearish candles (close < open): Majority of volume is selling, with upper wick and 30% of body getting buying weight
- Doji candles (close = open): Volume split 50/50 between buying and selling

The wick weighting acknowledges that wicks represent rejected prices where one side overwhelmed the other, providing additional directional information beyond just the candle body.

2. Pressure Index Normalization

Raw delta values are normalized to create a pressure index ranging from -100 (extreme selling) to +100 (extreme buying):

pressureIndex = ta.sma(delta, deltaLength) / ta.sma(volume, deltaLength) * 100

This normalization divides smoothed delta by smoothed volume, creating a percentage that shows the proportion of volume favoring buyers vs sellers. The smoothing (default 14 periods) reduces noise while maintaining responsiveness to genuine pressure shifts.

The pressure index is further enhanced with volume-weighted calculations:

vwPressure = ta.vwma(pressureIndex, deltaLength)

Volume-weighted pressure gives more importance to high-volume bars, ensuring that pressure readings reflect periods of genuine institutional participation rather than low-volume noise.

3. Pressure Zone Classification

The indicator classifies pressure into seven distinct zones:

• Extreme Buy (>70): Overwhelming buying pressure, potential exhaustion or continuation

• Strong Buy (50-70): Significant buying dominance, healthy uptrend conditions

• Moderate Buy (30-50): Mild buying bias, early trend development

• Weak Buy (20-30): Slight buying edge, transitional conditions

• Neutral (-20 to +20): Balanced conditions, no clear directional pressure

• Weak Sell (-30 to -20): Slight selling edge, transitional conditions

• Moderate Sell (-50 to -30): Mild selling bias, early downtrend development

• Strong Sell (-70 to -50): Significant selling dominance, healthy downtrend conditions

• Extreme Sell (<-70): Overwhelming selling pressure, potential exhaustion or continuation


These zones help traders quickly assess current pressure conditions and identify extreme readings that often precede reversals or accelerations.

4. Absorption Detection System

Absorption occurs when high volume produces minimal price movement, indicating that one side is absorbing the other's orders:

avgVolume = ta.sma(volume, 20)
avgRange = ta.sma(barRange, 20)
volumeRatio = volume / avgVolume
rangeRatio = barRange / avgRange
absorption = volumeRatio > absorptionThreshold and rangeRatio < 0.5

The system identifies absorption when:
- Volume exceeds average by the threshold multiplier (default 2.5x)
- Price range is less than 50% of average range

Absorption is classified as:
- Buy Absorption: High volume + small range + positive delta = Institutional accumulation
- Sell Absorption: High volume + small range + negative delta = Institutional distribution
- Extreme Absorption: Absorption score exceeds 1.5x threshold = Major institutional activity

Absorption zones often mark significant support/resistance levels where institutions have established large positions.

5. Smart Money Divergence Analysis

The indicator compares volume-weighted average price (VWAP) to simple moving average to detect smart money positioning:

vwPrice = ta.vwma(close, 20)
actualPrice = ta.sma(close, 20)
smartMoneyDivergence = ((vwPrice - actualPrice) / actualPrice) * 100

When VWAP is significantly above SMA (>2%), it indicates that higher-volume bars occurred at higher prices, suggesting smart money accumulation. When VWAP is significantly below SMA (<-2%), it indicates higher-volume bars occurred at lower prices, suggesting smart money distribution.

Smart money signals are generated when:
- Bullish: Divergence >2%, price below VWAP, positive pressure = Accumulation opportunity
- Bearish: Divergence <-2%, price above VWAP, negative pressure = Distribution warning

6. Order Block Detection

Order blocks are identified using institutional footprint patterns:

bullishOB = close[1] < open[1] and close > open and volume > avgVolume * 1.2
bearishOB = close[1] > open[1] and close < open and volume > avgVolume * 1.2

Bullish order blocks occur when:
- Previous candle was bearish (close < open)
- Current candle is bullish (close > open)
- Volume exceeds average by 20%

This pattern suggests institutions placed buy orders in the previous bearish candle, which then fueled the bullish reversal. The zone between the previous candle's low and high becomes a potential support area.

Bearish order blocks follow the inverse logic, marking potential resistance zones where institutional sell orders were placed.

7. Cumulative Delta Tracking

The indicator maintains a running total of delta to track longer-term institutional positioning:

var float cumulativeDelta = 0
cumulativeDelta += delta

Rising cumulative delta indicates sustained buying pressure (accumulation phase). Falling cumulative delta indicates sustained selling pressure (distribution phase). The rate of change in cumulative delta shows acceleration or deceleration of institutional flow.

The indicator also tracks session cumulative delta that resets on trend changes, providing shorter-term context for intraday pressure analysis.

8. Delta Momentum and Acceleration

The indicator calculates momentum and acceleration metrics:

deltaMomentum = ta.roc(pressureIndex, 5)
deltaAcceleration = ta.roc(deltaMomentum, 3)

Delta momentum shows the rate of change in pressure, identifying when pressure is building or fading. Delta acceleration (second derivative) identifies inflection points where momentum is changing direction, often preceding major pressure shifts.

Positive acceleration with positive momentum suggests strengthening buying pressure. Negative acceleration with positive momentum warns that buying pressure is weakening, even if still positive.

9. Multi-Timeframe Pressure Analysis

The indicator requests pressure data from four higher timeframes (default: 5m, 15m, 60m, 240m):

htf1_pressure = request.security(syminfo.tickerid, htf1, pressureIndex, lookahead=barmerge.lookahead_off)

MTF confluence score is calculated by averaging the sign of pressure across all timeframes:

mtfConfluence = (math.sign(htf1_pressure) + math.sign(htf2_pressure) +
                 math.sign(htf3_pressure) + math.sign(htf4_pressure)) / 4 * 100

Confluence scores near +100 indicate all timeframes show buying pressure. Scores near -100 indicate all timeframes show selling pressure. Scores near 0 indicate mixed or transitional conditions across timeframes.

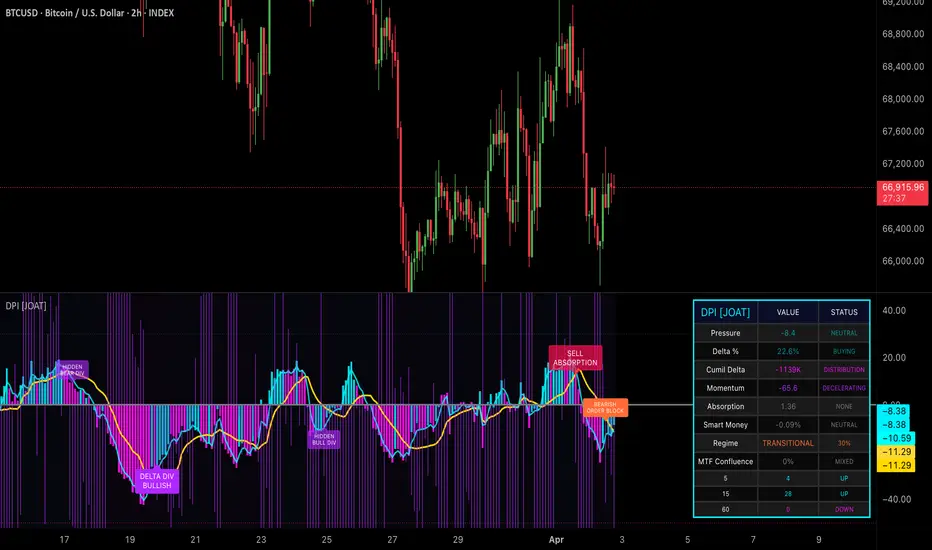

Visual Elements

• Pressure Index Columns: Main histogram showing pressure index with gradient coloring from extreme sell (pink) to extreme buy (cyan)

• Volume-Weighted Pressure Line: Yellow line overlay showing VWMA of pressure for trend identification

• Pressure EMA Line: Cyan line showing smoothed pressure trend

• Delta Momentum Histogram: Purple histogram showing rate of change in pressure

• Reference Lines: Horizontal lines at 0, ±30, ±50, ±70 marking pressure zone boundaries

• Divergence Labels: Text labels marking regular and hidden divergences between price and pressure

• Smart Money Labels: Green labels marking accumulation/distribution signals

• Absorption Markers: Cyan/red labels marking buy/sell absorption zones

• Order Block Boxes: Orange boxes marking institutional order block zones on price chart

• Extreme Pressure Labels: Small labels marking extreme buy/sell pressure conditions

• Pressure Heatmap: Subtle background gradient showing pressure intensity

• Comprehensive Dashboard: Real-time metrics table showing pressure, delta %, cumulative delta, zone, absorption, smart money, divergence, momentum, MTF confluence, and all key metrics


The dashboard displays 12+ key metrics with color-coded values and status indicators, providing complete pressure analysis at a glance.



Input Parameters

Core Settings:

• Delta Length: Period for delta smoothing (5-100, default 14)

• Smoothing Period: Additional smoothing for pressure index (1-20, default 3)

• Volume MA Length: Period for volume average (5-100, default 20)

• Absorption Threshold: Volume multiplier for absorption detection (1.0-5.0, default 2.5)


Multi-Timeframe:

• Enable Multi-Timeframe Analysis: Toggle MTF pressure analysis (default enabled)

• HTF 1/2/3/4: Four higher timeframe selections (default 5m, 15m, 60m, 240m)


Display Options:

• Show Cumulative Delta: Toggle cumulative delta tracking (default enabled)

• Show Absorption Zones: Toggle absorption detection markers (default enabled)

• Show Divergences: Toggle divergence detection (default enabled)

• Show Smart Money Signals: Toggle smart money analysis (default enabled)

• Show Volume Profile: Toggle volume profile POC (default enabled)

• Show Dashboard: Toggle metrics table (default enabled)

• Show Pressure Heatmap: Toggle background gradient (default enabled)

• Show Order Blocks: Toggle order block boxes (default enabled)


Colors:
All colors are fully customizable including buy pressure (neon cyan), sell pressure (neon pink), buy absorption (neon cyan), sell absorption (neon red), smart money (neon green), divergence (neon purple), and order blocks (sunset orange).

How to Use This Indicator

Step 1: Assess Current Pressure
Check the dashboard "Pressure" value and "Zone" classification. Extreme readings (>70 or <-70) often precede reversals or strong continuations. Strong readings (50-70 or -50 to -70) indicate healthy trend conditions.

Step 2: Monitor Delta Percentage
Review "Delta %" showing the proportion of volume favoring buyers vs sellers. Values above 50% indicate buying dominance, below -50% indicate selling dominance. This provides confirmation of pressure index readings.

Step 3: Track Cumulative Delta
Observe "Cum Delta" to identify longer-term institutional positioning. Rising cumulative delta during pullbacks suggests accumulation. Falling cumulative delta during rallies warns of distribution.

Step 4: Identify Absorption Zones
Watch for absorption labels and check dashboard "Absorption" status. Buy absorption near support levels suggests institutional accumulation. Sell absorption near resistance suggests institutional distribution. These zones often become significant support/resistance.

Step 5: Detect Smart Money Divergence
Monitor smart money labels and dashboard status. Accumulation signals during downtrends suggest smart money is buying weakness. Distribution signals during uptrends warn that smart money is selling strength.

Step 6: Analyze Divergences
Look for divergence labels where price makes new highs/lows but pressure doesn't confirm. Regular divergences signal potential reversals. Hidden divergences suggest trend continuation after pullbacks.

Step 7: Map Order Blocks
Identify order block boxes on the price chart. These zones mark where institutions placed large orders. Price often respects these levels on retests, providing high-probability entry zones.

Step 8: Confirm with MTF Confluence
Check "MTF Confluence" in dashboard. High positive confluence (>75) confirms buying pressure across timeframes. High negative confluence (<-75) confirms selling pressure. Low confluence suggests mixed conditions.


Best Practices

• Use on liquid instruments with reliable volume data for most accurate pressure readings

• Extreme pressure readings (>70 or <-70) are most reliable when accompanied by volume surges

• Absorption zones near key price levels offer highest-probability reversal setups

• Smart money divergence signals work best when confirmed by order block formation

• Cumulative delta diverging from price often precedes major reversals

• Order blocks are most reliable when formed on high volume (>1.5x average)

• MTF confluence above 75% or below -75% provides strong directional conviction

• Delta momentum acceleration signals often precede pressure regime changes

• Pressure heatmap intensity helps visualize pressure strength at a glance

• Regular divergences are most reliable at extreme pressure levels

• Hidden divergences work best in established trends as continuation signals

• Combine pressure analysis with price action for optimal entry timing


Indicator Limitations

• Volume delta estimation is approximate - true delta requires exchange order flow data

• The indicator works best on instruments with consistent, reliable volume reporting

• Low-volume instruments or off-market hours can produce unreliable pressure readings

• Absorption detection requires sufficient volume history for accurate average calculations

• Smart money divergence assumes VWAP represents institutional positioning, which is a simplification

• Order block detection uses pattern recognition that may not capture all institutional activity

• MTF analysis requires data availability on all selected timeframes

• Cumulative delta can drift significantly over long periods without reset mechanisms

• The indicator shows pressure dynamics but cannot predict how long pressure will persist

• Extreme pressure can remain extreme longer than expected during strong trends

• Divergences can persist for extended periods before price responds


Technical Implementation

Built with Pine Script v6 using:

• Advanced volume delta estimation using candle structure and wick analysis

• Normalized pressure index calculation with volume-weighted enhancement

• Seven-zone pressure classification system

• Absorption detection using volume ratio and range ratio analysis

• Smart money divergence calculation comparing VWAP to SMA

• Order block detection using institutional footprint patterns

• Cumulative delta tracking with session reset capability

• Delta momentum and acceleration calculations using rate-of-change

• Multi-timeframe security requests with proper lookahead settings

• Fractal-based divergence detection system

• Dynamic color gradients based on pressure intensity

• Comprehensive dashboard with 12+ metrics and color-coded indicators

• Persistent label system to prevent chart clutter

• Order block box management with automatic cleanup


The code is fully open-source with detailed comments explaining each pressure calculation and detection algorithm.

Originality Statement

This indicator is original in its comprehensive pressure analysis approach. While volume delta concepts are established, this indicator is justified because:

• It combines volume delta estimation with absorption detection, smart money analysis, and order block mapping in a unified system

• The enhanced delta calculation uses wick weighting to capture rejected price information

• Seven-zone pressure classification provides granular pressure assessment beyond simple buy/sell

• Absorption detection identifies institutional activity through volume-range relationship analysis

• Smart money divergence reveals hidden positioning through VWAP-SMA comparison

• Order block detection maps institutional zones using volume-confirmed reversal patterns

• Multi-timeframe confluence scoring validates pressure across temporal dimensions

• Delta momentum and acceleration tracking provides early warning of pressure shifts

• The comprehensive dashboard synthesizes 12+ distinct metrics into unified pressure intelligence

• Integration of cumulative delta, absorption, divergence, and order blocks creates layered confirmation


Each component contributes unique intelligence: delta shows directional bias, pressure index quantifies strength, absorption reveals institutional activity, divergences expose hidden positioning, order blocks mark key zones, MTF confluence validates conviction, and momentum tracks acceleration. The indicator's value lies in combining these complementary perspectives into a cohesive pressure analysis system.

Disclaimer

This indicator is provided for educational and informational purposes only. It is not financial advice or a recommendation to buy or sell any financial instrument. Trading involves substantial risk of loss and is not suitable for all investors.

Volume pressure analysis is a tool for understanding order flow dynamics, not a crystal ball for predicting future price movement. Extreme pressure readings do not guarantee reversals. Absorption zones do not guarantee support/resistance. Past pressure patterns do not guarantee future pressure patterns. Market conditions change, and strategies that worked historically may not work in the future.

The metrics displayed are mathematical calculations based on current market data, not predictions of future price movement. Pressure readings, divergences, absorption zones, and order blocks do not guarantee profitable trades. Users must conduct their own analysis and risk assessment before making trading decisions.

Always use proper risk management, including stop losses and position sizing appropriate for your account size and risk tolerance. Never risk more than you can afford to lose. Consider consulting with a qualified financial advisor before making investment decisions.

The author is not responsible for any losses incurred from using this indicator. Users assume full responsibility for all trading decisions made using this tool.

-Made with passion by officialjackofalltrades
